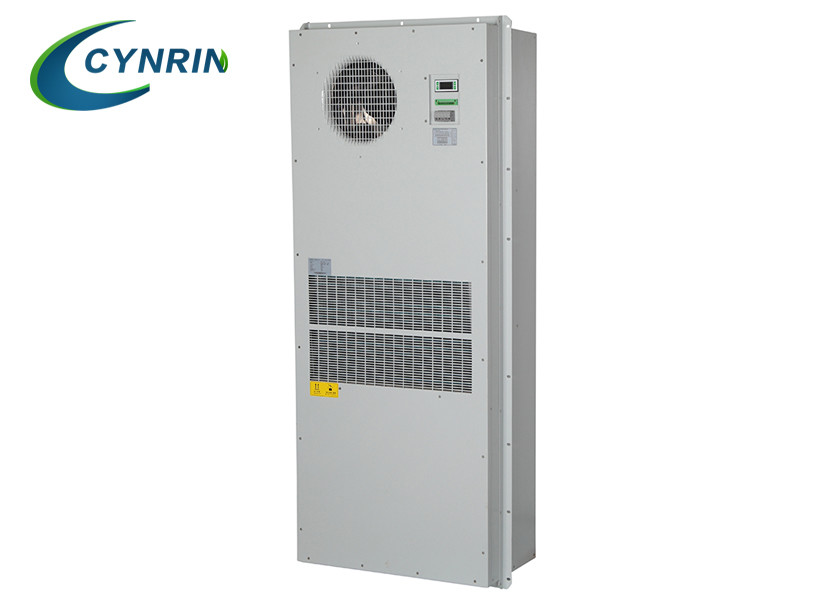

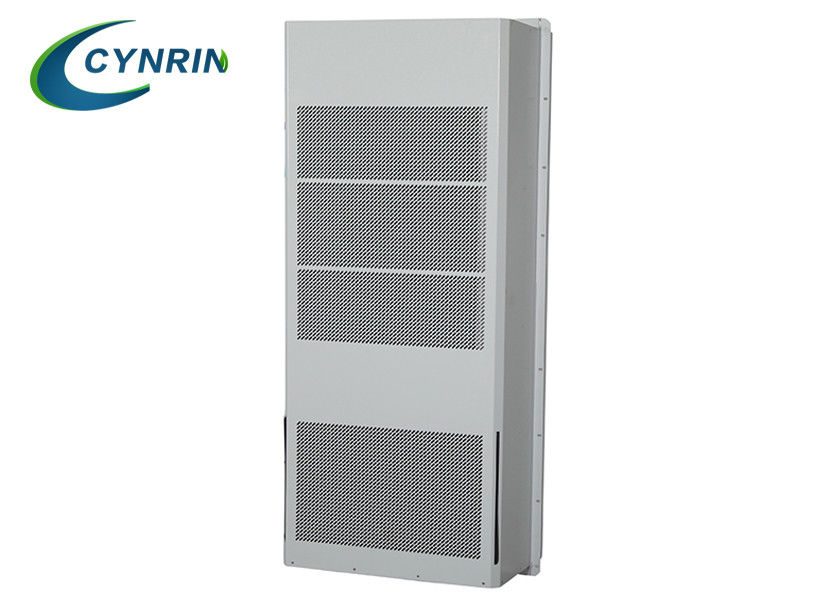

AC220V 7500W Air Conditioner for Telecom Cabinet , UPS Cabinet and Telecom Base Station

Product Characteristic

This high power cabinet air conditioner is a neccessary parts for the telecom cabinets ,UPS cabinet and Telecom base Station, which has the following features.

1. The intelligent controller with data collection function supports RS485 communication and can be connected with customers’ system;
2. 4 way DI inputs: smoke, water, door, voltage difference, shock alarm, etc.;
3. 6 way analog outputs: temperature and humidity, voltage, current, AC detection etc.;
4. Can work together with telecom room air conditioner and set operating range;
5. Two way DO programmable output:: general alarm output or other parameters output;
6. Used for outdoor cabinet temperature control, energy saving and optimized efficiency;
7. Storage: can store 200 equipment working information and 2000 history record data;
8. Two way temperature and humidity collection channels: collecting temperature and humidity of thermostatic cabinet and base station;
9. Regular hydrogen exhaust ;
10. Sensors, fans, compressor fault detection function; environment temperature and humidity, equipments fault alarm function.

Product Advantage

● 220VAC power input

● 3500-7500W cooling capacity (L35L35)

● Door/ wall mounted – easy integration in outdoor cabinets

● Optional configured with heater

● Wide working temperature range: -15ºC to +55 ºC

● Energy saving

● Lifetime >10 years – minimum maintenance

● Environmental friendly – R134a and RoHS compliant

● Resistant to corrosive environments – IP55 and Salt fog tested

● RS485 for remote control

● Soft start

● Easy installed that one person can finish the work

● Multi-Function alarm output.

● High energy efficiency reach 4.5.

Mass Production Model

Product details

• Remote measuring, remote communication, remote control, which can realize multiple automatic protection and comprehensive self-testing function.
• Strict process control and famous brand components to ensure high quality and reliability of this product
• Fit for harsh condition (T3),R134 a refrigerant
• Multiple self-protection design, RS485 communication port (MODBUS-RTU protocol)
• LED display, all the setting can charge at the field.
• The heating function is optional
• Dry contact alarm output, NO/NC optional
• Anti-theft design, without the protection cover.

Installation Diagram

Application


In order to comply with the development requirements of national energy conservation, environmental protection and low carbon economy, we have continuously transformed and upgraded, and invested heavily in cabinet air conditioners and industrial air conditioners, and successfully developed more efficient and energy-saving air conditioning units.

The products are widely used in

• telecommunications,
• electric power
• industrial automation
• rail transit
• automobiles
• CNC machine tools and other fields.
• Indoor and Outdoor Battery Cabinet
• Wireless Indoor and Outdoor Cabinet
• Indoor and Outdoor Hybrid Base station

Package and Shipping

FAQ

1. Q: How about the air cooler material?

    A: It makes by 100% new plastic, pure copper for motor.

2. Q:  What voltages you can do, could you make special voltages?

    A:  we can make DC48  and all AC voltage products for you.

3. Q: I want to use our own brand, is it OK?

    A:  It is possible, we supply the OEM products too.

4. Q: How about the warranty?

    A:  All the unit warranty is one year.
