| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CYNRIN |
| Certification: | CE, CCC |
| Model Number: | CCA001EA |
| Minimum Order Quantity: | 1 sets |
| Price: | USD300~3999 unit |
| Packaging Details: | Wooden case package. |
| Delivery Time: | 14 work days after payment |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 100000 sets per year |

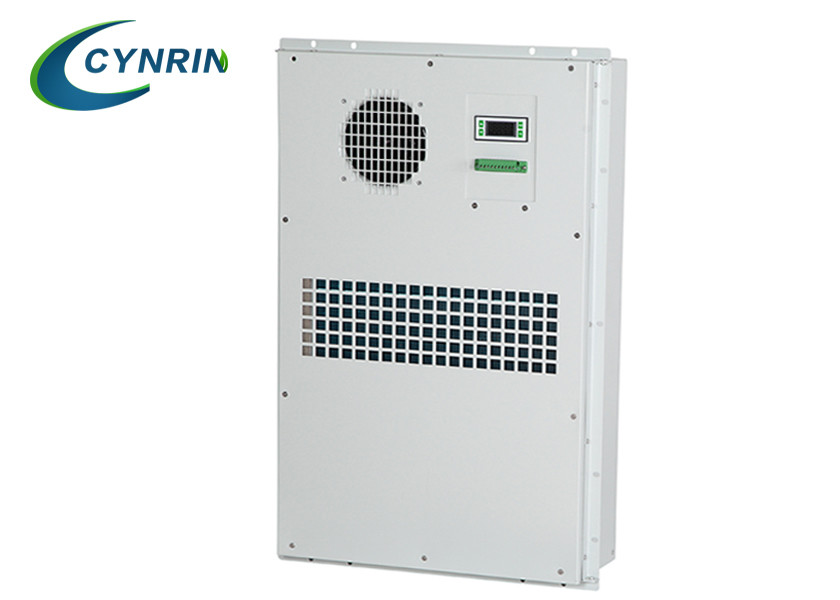

The telecom outdoor Air Conditioner Cooling Solution is special for the telecom equipment air cooling and heating. Which structure is double wall and with insulation, and it is a sandwitch structure. In normal, we call it outdoor telecom equipment cabinet air conditioner. The cabinet lock is anti-theft three point lock. Application is outdoor telecom base station, telecom tower.
● 220VAC power input
● 300-1000W cooling capacity (L35L35)
● Door/ wall mounted – easy integration in outdoor cabinets
● Optional configured with heater
● Wide working temperature range: -15ºC to +55 ºC
● Energy saving
● Lifetime >10 years – minimum maintenance
● Environmental friendly – R134a and RoHS compliant
● Resistant to corrosive environments – IP55 and Salt fog tested
● RS485 for remote control
● Soft start
● Easy installed that one person can finish the work
● Multi-Function alarm output.
● High energy efficiency reach 4.5.
| Cooling Capacity(L35/L35) | Product Model | Mounting Method | Dimension(W*D*H)mm | Dimension(W*D*H)mm Without flange | IP | Noise (dB A) | Certification |
| 300W | CCA003EA | Side- Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 400W | CCA004EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 500W | CCA005EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 600W | CCA006EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 800W | CCA008EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
| 1000W | CCA010EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
Specification
1 . Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W*D*H 352*175*583mm /482*175*782mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Welded or assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
2. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W*D*H 352*175*583mm /482*175*782mm (2) One compartment: equipment compartment (3)With one front door, and special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; (5)There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. |
| 2 | Air Conditioner | 1 | Set |
Power supply: AC220V, 50HZ, Cooling capacity: 1.5KW, Model:TC06-150JFH/01 |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | 12038 DC48V |
| 4 | Environment Monitoring Unit(Optional) | 1 | Set | 1U |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Door Sensor | 2 | PC | One for controlling LED lamp, the other for open door alarm |
| 8 | LED Lamp | 1 | PC | DC48V |
| 9 | Package | 1 | Set | Wooden Case |
In order to comply with the development requirements of national energy conservation, environmental protection and low carbon economy, we have continuously transformed and upgraded, and invested heavily in cabinet air conditioners and industrial air conditioners, and successfully developed more efficient and energy-saving air conditioning units.
The products are widely used in
FAQ
1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.
2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.
3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.
4. Q: How about the warranty?
A: All the unit warranty is one year.
