| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CYNRIN |
| Certification: | CE, CCC,RoHS |
| Model Number: | LCA015EA |
| Minimum Order Quantity: | 100 sets |
| Price: | USD299~3999 unit |
| Packaging Details: | Wooden case package. |
| Delivery Time: | 14 work days after payment |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 100000 sets per year |
Cabinet air conditioner is thermal control unit with integrated design.
This is our new design which is more convenient for installation and will lower the cost. is designed for energy saving purpose, hybrid air conditioner with thermosiphon is the newest technology, is a compact, high efficiency combo air conditioner, which can reduce OPEX for end users.
● Two-in-one, configured with air conditioner and thermosiphon system
● Air conditioner capacity: 1100~3000W. Thermosiphon capacity: 75~120W/K
● Energy saving, different cooling mode for varied ambient
● Compact design
● Door mounted – easy integration in outdoor cabinets and enclosures
● Wide working temperature range: -40ºC to +55ºC
● Low noise, the lose level of unit can be reduced according to the heat load, silently operating in most time
● Lifetime >10 years – minimum maintenance
● Environmental friendly – R134a and RoHS compliant
● Resistant to corrosive environments – IP55 and Salt fog tested

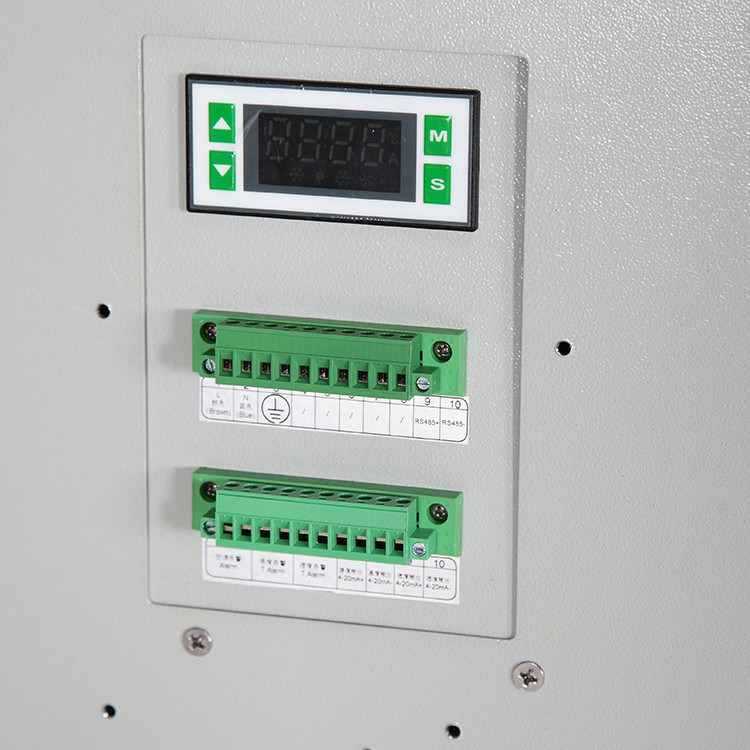

● RS485 for remote control
| Model | Mounting method | Input voltage | Dimensions (Include flange).MM | Dimensions (Without flange) |
Cooling capacity (L35/L35).W |
Power consumption (L35/L35).W |
IP grade | Noise dB (A) | Certification |
| LCA003EA LCA004EA |
Side/ Embedded |
AC 220V±15% 50Hz±3 |
352*175*583 | 315*175*546 | 300 400 |
170 200 |
55 | 60 | CE&3C |
| LCA005EA LCA006EA |
352*175*583 | 315*175*546 | 500 600 |
210 260 |
55 | 60 | CE&3C | ||
| LCA008EA LCA010EA |
482*175*782 | 445*175*745 | 800 1000 |
340 440 |
55 | 65 | CE&3C | ||
| LCA013EA LCA015EA |
482*175*782 | 445*175*745 | 1300 1500 |
550 650 |
55 | 65 | CE&3C | ||
| LCA020EA LCA023EA |
482*200*782 | 445*200*745 | 2000 2300 |
870 900 |
55 | 65 | CE&3C | ||
| LCA025EA LCA030EA |
536*225*1201 | 485*225*1150 | 2500 3000 |
1090 1300 |
55 | 65 | CE&3C |
The products are widely used in telecommunications, electric power, industrial automation, rail transit, automobiles, CNC machine tools and other fields.
● Outdoor Radio Base Stations / Telecom Cabinets
● Outdoor Solar Powered Telecom Cabinets
● Outdoor Power Supply Cabinets
● Outdoor Wind Power Control Cabinets / Shelters
● Outdoor Gen-set Control Cabinets / Shelters
1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.
2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.
3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.
4. Q: How about the warranty?
A: All the unit warranty is one year.
