13500BTU 48V DC Powered Air Conditioner 4000W For Outdoor Telecom Battery Cabinet

Basic Information
Place of Origin: CHINA
Brand Name: CYNRIN
Certification: CE
Model Number: CCA040ED
Minimum Order Quantity: 1 sets
Price: USD799~3999 unit
Packaging Details: Wooden case package.
Delivery Time: 7 work days after payment
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 100000 sets per year

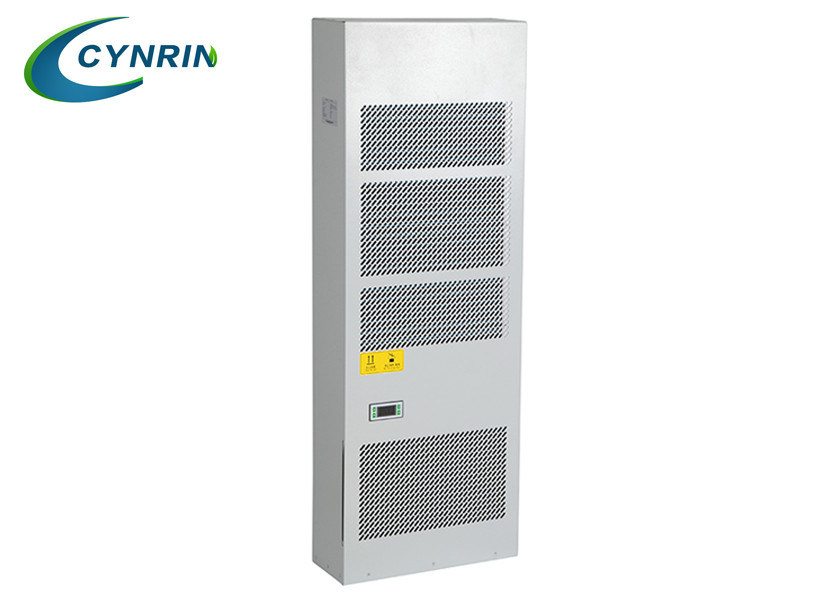

13500BTU 48V DC battery powered 4000W air conditioner for outdoor telecom battery cabinet



Product Characteristic


The DC Cabinet Air Conditioner is a high-efficiency, purely DC-powered split air conditioner for Telecom networks. The solution eliminates the need for an inverter and has capabilities far beyond those of conventional comfort cooling systems.Which supply is 48VDC, mainly used for industry field cabient climate control. using environmental friendly refrigerant R134A, close loop cooling protects equipment from ambient environment, with adjustable indoor temperature set point from 20-40 degree ventiation not recommend any more since the system highest efficiency. Adaptable for T3 condition which up to 55 degree tropic area.



Product Features



Brand Name
Cynrin
Model number
CCA040ED
Product name
4000W DC Cabinet Air Conditioner
Product Type
DC Air Conditioner
Power supply
48VDC
Cooling capacity(W)
4000
Heating capacity(W)
4000
Power consumption(W)
105
Range of working temperature(℃)
-40 ~+55
Running current (A)
Cooling : 2.2
Heating :7.0
Starting current (A)
Soft start-up
Dimension (mm)
550*300*1350mm
Refrigerant type
R134a
IP level
IP 55
Noise level (dB)
60
Weight (Kg)
8.5
Installation
Door mounted (Hang)
Certification
CE
Color
Electrostatic coating (RAL7035)
Ambient set temperature (℃)
20~40
Temperature control mode
Digital display thermostat
Power supply connection
Three-core conductor (2~5m long)



Slipt Air Conditioner Advantage







Specifications





Cooling Capacity(L35/L35) Product Model Mounting Method Dimension(W*D*H)mm  Dimension(W*D*H)mm Without flange IP Noise (dB A) Certification
300W CCA003ED Side- Embedded 181*200*400 181*200*400 55 60 CE,CCC
300W CCA003SD Side 240*150*400 240*150*400
500W CCA005ED Side-Embedded 352*175*583 315*175*546 55 65 CE,CCC
600w CCA006ED Side-Embedded 352*175*583 315*175*546
800W CCA008ED Side-Embedded 482*175*782 445*175*745 55 65 CE
1000W CCA010ED Side-Embedded 482*175*782 445*175*745 55 65 CE
1500W CCA015ED Side-Embedded 482*200*782 445*200*745 55 65 CE
2000W CCA020ED Side-Embedded 482*200*782 445*200*745 55 65 CE
2500W CCA025ED Side-Embedded 536*225*1201 485*225*1150 55 65 CE
3000W CCA030ED Side-Embedded 536*225*1201 485*225*1150 55 65 CE
3500W CCA035ED Side-Embedded 550*300*1350 500*300*1300 55 65 CE
4000W CCA040ED Side-Embedded 550*300*1350 500*300*1300 55 65 CE







AC air conditioner details show




13500BTU 48V DC Powered Air Conditioner 4000W For Outdoor Telecom Battery Cabinet



 13500BTU 48V DC Powered Air Conditioner 4000W For Outdoor Telecom Battery Cabinet






Application


● Indoor and Outdoor Hybrid Base station
Indoor and Outdoor Battery Cabinet
● Wireless Indoor and Outdoor Cabinet



13500BTU 48V DC Powered Air Conditioner 4000W For Outdoor Telecom Battery Cabinet



Package Informations



Package
Single and Mult
Packing material
Carton and ply-wooden pallet
Single packing information
Net weight: 15.5Kg
Gross Weight: 35Kg
Size: L600*D400*H1400mm
Multi packing information
Packing quantity: 5pcs
Net weight: 155Kg
Gross Weight: 187Kg
Size: L1300*W1100*H1585mm
