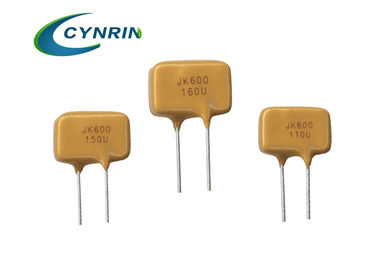

Radial Leaded Series Polymer PTC Resettable Fuse High Voltage Overcurrent Protection

Basic Information
Place of Origin: China
Brand Name: JINKE
Certification: TUV, UL, CSA
Model Number: 600-110, 600-150, 600-160
Minimum Order Quantity: 200pcs
Price: USD0.1~0.3 piece
Packaging Details: plstic bag & carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 1000000 pcs per month

600V 0.11A to 0.16A Radial leaded series Polymer PTC resettable fuse



Product Information





This radial leaded type resettable pptc thermal fuse is the highest voltage fuse for overcurrent protection, rated voltage is 600V, operation current is from 0.11A to 0.16A.





1. Electrical parameters



Model Ihode(A) Itrip(A) VMAX interrupt(V) IMAX(A) Pd (W) Maximum Tim- to-Trip Resistance(Ω)
Current(A) Time(S) RMIN- RMAX
JK600-110U 0.11 0.22 600 3 1.0 1.0 8 6-16
JK600-150U 0.15 0.30 600 3 1.0 1.0 9 5-14
JK600-160U 0.16 0.32 600 3 1.0 1.0 10 4-12



IH=Hold current:maximumcurrent at which the device will not trip at 25℃ still air.

IT=Trip current:minimumcurrent at which the device will nalways at 25℃ still air.

Vmax=Maximum voltagedevice can withstand without damage at rated current.

Imax=Maximum faultcurrent device can withstand tithout damage at rated voltage.

Ttrip=Maximum time totrip(s) at assigned current.

Pd=Typical powerdissipation:typical amount of power dissipated by the decice when in state airenvironment.

Rmin=Minimum deviceresistance at 25℃ prior to tripping.

Rmax=Maximum deviceresistance at 25℃ prior to tripping.



2. Dimension Details

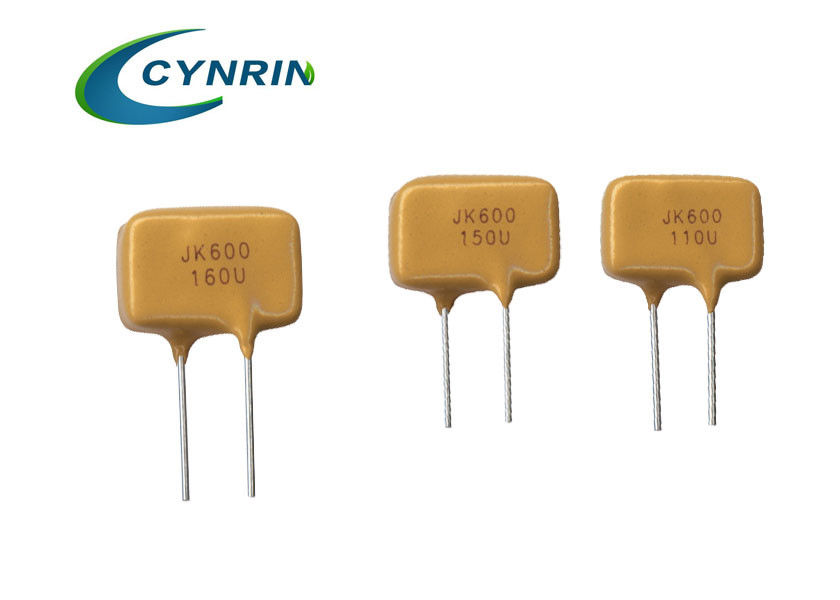

Radial Leaded Series Polymer PTC Resettable Fuse High Voltage Overcurrent Protection





Model Dimensions(mm) Lead material Shape
A(max) B(max) C(max) D(typ) Tinned metal(mm) Fig
JK600-110U 15 15 5.5 5.1 22AWG/Φ0.6 1
JK600-150U 15 15 5.5 5.1 22AWG/Φ0.6 1
JK600-160U 15 15 5.5 5.1 22AWG/Φ0.6 1



3. Thermal Derating Chart-IH(A)





Model Maximum ambient operating temperature(℃)
-40℃ -20℃ 0℃ 25℃ 30℃ 40℃ 50℃ 60℃ 70℃ 85℃
JK600 series 147% 138% 119% 100% 92% 83% 73% 64% 55% 42%



Product Application



This type named as Resettable Fuse PPTC DIP JK600 Series is widely used,Central Office/telecom centers; Customer Premises Equipment; LAN/WAN equipment; Access equipment,etc

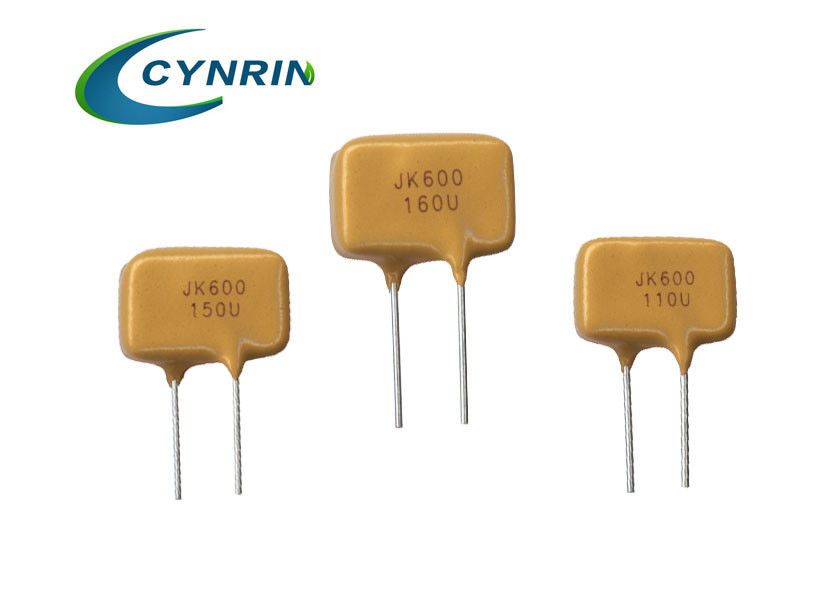

Radial Leaded Series Polymer PTC Resettable Fuse High Voltage Overcurrent Protection

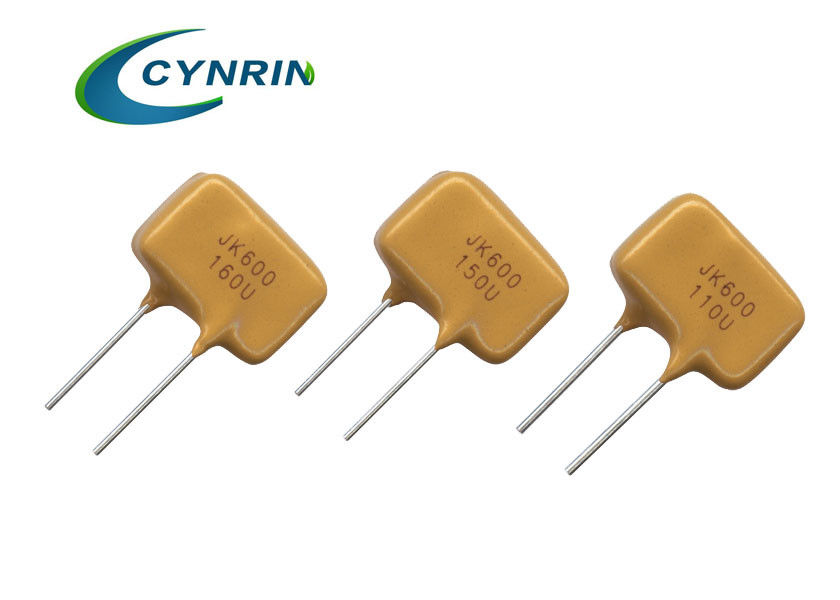

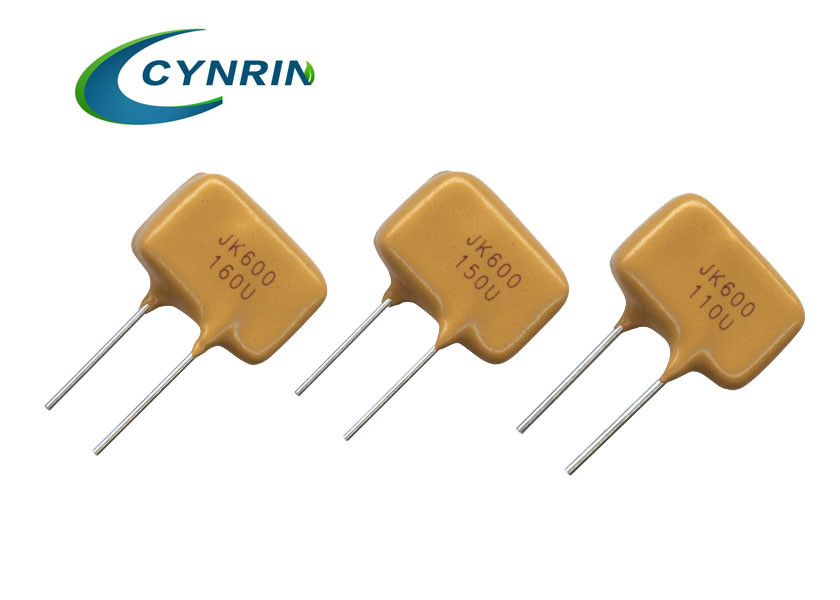

Radial Leaded Series Polymer PTC Resettable Fuse High Voltage Overcurrent Protection
