Small Size Strap Type Resettable Electronic Fuse For Battery Packs JK-M SERIES

Basic Information
Place of Origin: China
Brand Name: JINKE
Certification: TUV, UL, CSA
Model Number: M-120~ M-1000
Minimum Order Quantity: 1000pcs
Price: USD0.03~0.3 piece
Packaging Details: plstic bag & carton packing
Delivery Time: 7-10 work days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 2000000 pcs per month

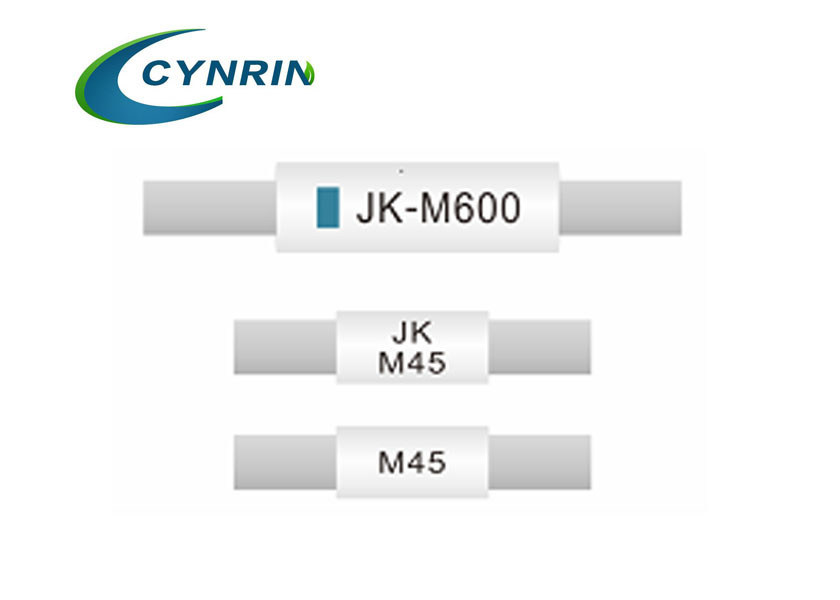

Small Size Strap type Axial leaded PTC Resettable Fuse for Battery Packs JK-M SERIES



Product Information





The JK M Seris axial leaded type resettable pptc thermal fuse highest current can be reach 10Amp, which operation current can be from 1.2A to 10A.  Maximum Voltage is 10Vdc ,Operating Temperature:-40℃ TO 85℃ .Lead is free by customize.



Features



◇ Lower power consumption by lower resistance
◆ The miniaturized PTC elements leads a flexible design around battery
◆ Typical used for protection of Li-ion /Polymer Li-ion battery
◇ Lead-free
◆ Halogen free
◇ Agency recognition:UL,CSA,TUV





1. Electrical parameters





Model IH IT Vmax Imax Pd Maximum Time-to-trip Rmin Rmax R1max
(A) (A) (V) (A) (W) Current(A) Time(S) (Ω) (Ω) (Ω)
JK-M120 1.20 3.50 10 50 1.00 6.0 5.0 0.015 0.035 0.070
JK-M140 1.40 3.60 10 50 1.00 7.0 5.0 0.010 0.020 0.040
JK-M175 1.75 4.30 10 50 1.00 8.75 5.0 0.009 0.018 0.036
JK-M190 1.90 4.90 10 50 1.00 9.50 3.0 0.007 0.014 0.028
JK-M210 2.10 5.60 10 50 1.00 10.50 3.0 0.007 0.014 0.028
JK-M260 2.60 6.00 10 50 1.00 13.00 3.0 0.006 0.014 0.028
JK-M270 2.70 6.20 10 50 1.00 13.50 3.0 0.006 0.014 0.028
JK-M300 3.00 8.00 10 50 1.30 15.00 3.0 0.005 0.013 0.026
JK-M350 3.50 8.80 10 50 1.30 17.50 3.0 0.005 0.013 0.026
JK-M370 3.70 9.00 10 50 1.30 18.50 5.0 0.005 0.013 0.026
JK-M400 4.00 9.60 10 50 1.50 20.00 5.0 0.004 0.012 0.024
JK-M430 4.30 10.00 10 50 1.50 21.50 5.0 0.004 0.012 0.024
JK-M450 4.50 10.80 10 50 1.50 22.50 5.0 0.004 0.012 0.024
JK-M500 5.00 12.00 10 50 1.50 25.00 5.0 0.003 0.011 0.022
JK-M550 5.50 13.00 10 50 1.50 27.50 5.0 0.003 0.011 0.022
JK-M600 6.00 13.00 10 50 1.50 30.00 5.0 0.003 0.009 0.018
JK-M650 6.50 13.00 10 50 1.50 32.50 5.0 0.002 0.008 0.016
JK-M700 7.00 14.00 10 50 1.50 35.00 5.0 0.002 0.007 0.015
JK-M730 7.30 15.00 10 50 1.50 36.50 5.0 0.002 0.007 0.014
JK-M800 8.00 17.00 10 50 1.50 40.00 5.0 0.002 0.005 0.010
JK-M850 8.50 17.50 10 50 1.50 42.00 5.0 0.002 0.005 0.010
JK-M900 9.00 18.00 10 50 1.50 45.00 5.0 0.002 0.005 0.010
JK-M950 9.50 19.00 10 50 1.50 47.50 5.0 0.002 0.004 0.010
JK-M1000 10.00 20.00 10 50 1.50 50.00 5.0 0.001 0.004 0.010



IH=Hold current:maximumcurrent at which the device will not trip at 25℃ still air.

IT=Trip current:minimumcurrent at which the device will nalways at 25℃ still air.

Vmax=Maximum voltagedevice can withstand without damage at rated current.

Imax=Maximum faultcurrent device can withstand tithout damage at rated voltage.

Ttrip=Maximum time totrip(s) at assigned current.

Pd=Typical powerdissipation:typical amount of power dissipated by the decice when in state airenvironment.

Rmin=Minimum deviceresistance at 25℃ prior to tripping.

Rmax=Maximum deviceresistance at 25℃ prior to tripping.



2. Dimension Details



Small Size Strap Type Resettable Electronic Fuse For Battery Packs JK-M SERIES







Model A B C D E
Min Max Min Max Min Max Min Max Min Max
JK-M120 13 15 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M140 13 15 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M175 13 15 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M190 13 15 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M210 13 15 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M260 13 15 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M270 13 15 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M300 13 15 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M350 14.5 17 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M370 14.5 17 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M400 14.5 17 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M430 14.5 17 3.0 3.6 0.6 1.0 3.5 5.5 2.2 2.4
JK-M450 21.5 23.3 3.50 3.90 0.55 1.0 4.5 6.5 2.2 2.4
JK-M500 21.5 23.3 3.50 3.90 0.55 1.0 4.5 6.5 2.2 2.4
JK-M550 21.5 23.3 3.50 3.90 0.55 1.0 4.5 6.5 2.2 2.4
JK-M600 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2
JK-M650 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2
JK-M700 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2
JK-M730 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2
JK-M800 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2
JK-M850 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2
JK-M900 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2
JK-M950 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2
JK-M1000 20.9 23.1 4.6 5.5 0.60 1.00 4.0 6.0 3.8 4.2



3. Thermal Derating Chart-IH(A)



Model Maximum ambient operating temperature(℃)
-40 -20 0 25 40 50 60 70
JK-M120 2.00 1.80 1.55 1.20 1.00 0.85 0.70 0.55
JK-M140 2.40 2.10 1.80 1.40 1.14 0.97 0.80 0.63
JK-M175 3.10 2.65 2.25 1.75 1.40 1.25 1.05 0.85
JK-M190 3.60 3.10 2.60 1.90 1.60 1.30 1.20 1.00
JK-M210 3.60 3.20 2.80 2.10 1.84 1.40 1.34 1.10
JK-M260 4.50 3.95 3.35 2.60 2.15 1.85 1.70 1.15
JK-M270 4.60 4.00 3.40 2.70 2.20 1.90 1.60 1.30
JK-M300 5.20 4.50 3.85 3.00 2.45 2.10 1.75 1.40
JK-M350 5.90 5.20 4.50 3.50 2.80 2.40 2.00 1.60
JK-M370 6.10 5.40 4.70 3.70 3.00 2.50 2.10 1.70
JK-M400 6.20 5.50 4.80 4.00 3.30 2.80 2.50 2.00
JK-M430 6.30 5.60 4.90 4.30 3.50 3.00 2.70 2.20
JK-M450 6.40 5.70 5.05 4.50 4.05 3.70 3.40 3.05
JK-M500 6.95 6.20 5.60 5.00 4.50 4.10 3.80 3.40
JK-M550 7.60 6.80 6.15 5.50 4.95 4.50 4.25 3.85
JK-M600 8.25 7.40 6.65 6.00 5.40 5.00 4.70 4.30
JK-M650 8.90 8.05 7.20 6.50 5.80 5.45 5.10 4.70
JK-M700 9.60 8.70 7.70 7.00 6.20 5.80 5.40 5.05
JK-M730 9.85 9.00 8.00 7.30 6.45 6.05 5.65 5.25
JK-M800 10.40 9.80 8.80 8.00 7.00 6.60 6.20 5.80
JK-M850 11.25 10.40 9.40 8.50 7.50 7.00 6.75 6.10
JK-M900 12.10 11.00 9.95 9.00 7.95 7.40 6.90 6.40
JK-M950 12.60 11.50 10.0 9.50 8.40 7.90 7.25 6.75
JK-M1000 13.15 12.00 11.00 10.00 8.90 8.40 7.65 7.10

Small Size Strap Type Resettable Electronic Fuse For Battery Packs JK-M SERIES

Product Application



This type Resettable Fuse  JK-P SERIES is a protection device for NiCd/NiMH rechargesble battery packs,Li-ion/Polymer Li-ion battery,which are widely used in Portable media player battery packs;digital camera battery packs;Computer battery packs;Mobile radio battery packs;Tablet PC battery packs,etc.
