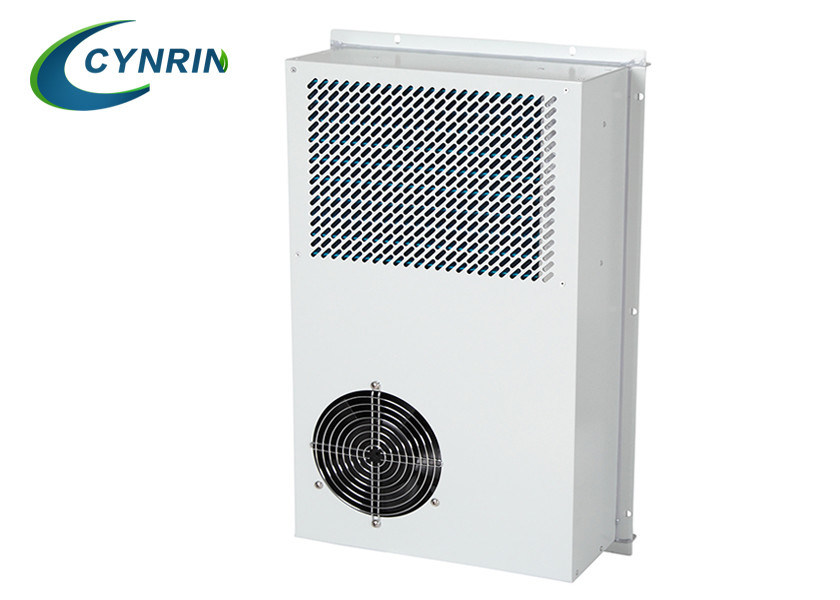

Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry

Basic Information
Place of Origin: CHINA
Brand Name: CYNRIN
Certification: CE, CCC
Model Number: CCA00XEA
Minimum Order Quantity: 80 sets
Price: USD399~3999 unit
Packaging Details: Wooden case package.
Delivery Time: 14 work days after payment
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 100000 sets per year

300W-7500W  AC Air Conditioner with High Efficiency Energy Saving for Energy & Power Industry



Product Characteristic


The AC series Air conditioner power supply is 220VAC, mainly used for industry field cabient climate control. using environmental friendly refrigerant R134A, close loop cooling protects equipment from ambient environment, with adjustable indoor temperature set point from 20-40 degree ventiation not recommend any more since the system highest efficiency. Adaptable for T3 condition which up to 55 degree tropic area.





Product Features



● Upper outlet design, remote air supply, fast cooling

● Unique concealed interface supports left and right wiring

● Professional humidity design, control relative humidity in the cabinet

● Fan speed regulation function as standard, saving energy and low noise

● Electric heating function as standard

● Support temperature and humidity signal output in 4~20mA

● Alarm dry contact support DC220V and AC250V external power supply

● RS485 interface, support modbus protocol

● LCD display with English and Chinese menu makes convenient operation

● Self start when power restart, and provide varieties of alarm reports and protection functions

● Working normally in 55℃ high temperature

● High reliability: life time >10 years, with minimum maintenance





Product Advantage



1.  Easy to Operation

● Protocol communication

● Alarm display

● Optional interface Chinese/English



2. High-Level Protection

● Nanometer-grade protection

● High heat dissipation efficiency

● Long service life



3. Intelligent Control

● Intelligent dehumidification control

● Adjustable fan speed

● Alarm output via dry contact





Application


● Indoor and Outdoor Hybrid Base station
Indoor and Outdoor Battery Cabinet
● Wireless Indoor and Outdoor Cabinet





Specifications



Cooling Capacity(L35/L35) Product Model Mounting Method Dimension(W*D*H)mm  Dimension(W*D*H)mm Without flange IP Noise (dB A) Certification
300W CCA003EA Side- Embedded 352*175*583 315*175*546 55 60 CE,CCC
400W CCA004EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
500W CCA005EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
600W CCA006EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
800W CCA008EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC
1000W CCA010EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC
1300W CCA013EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
1500W CCA015EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2000W CCA020EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2300W CCA023EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2500W CCA025EA Side-Embedded 536*225*1201 485*225*1150 55 65 CE,CCC
3000W CCA030EA Side-Embedded 536*225*1201 485*225*1150 55 65 CE,CCC
3500W CCA035EA Side-Embedded 550*300*1350 500*300*1300 55 65 CE,CCC
4000W CCA040EA Side-Embedded 550*300*1350 500*300*1300 55 65 CE,CCC
5000W CCA050EA Side-Embedded 650*300*1350 650*300*1300 55 65 CE,CCC
7500W CCA075EA Side-Embedded 711*350*1660 650*350*1600 55 65 CE,CCC







AC air conditioner details show




Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry



 Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry





Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry



Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry





Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry





Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry








Production process



Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry






Certifications



Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry




Factory




Energy Saving Control Panel AC Unit , Cabinet Cooling Unit For Power Industry



FAQ





1. Q: How about the air cooler material?

    A: It makes by 100% new plastic, pure copper for motor.



2. Q:  What voltages you can do, could you make special voltages?

    A:  we can make DC48  and all AC voltage products for you.



3. Q: I want to use our own brand, is it OK?

    A:  It is possible, we supply the OEM products too.



4. Q: How about the warranty?

    A:  All the unit warranty is one year.
