| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CYNRIN |
| Certification: | CE, CCC |
| Model Number: | CCA005EA |
| Minimum Order Quantity: | 1 sets |
| Price: | USD499.00~3999.00 unit |
| Packaging Details: | Wooden case package. |
| Delivery Time: | 7 work days after payment |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 80000 sets per year |
Product Characteristic

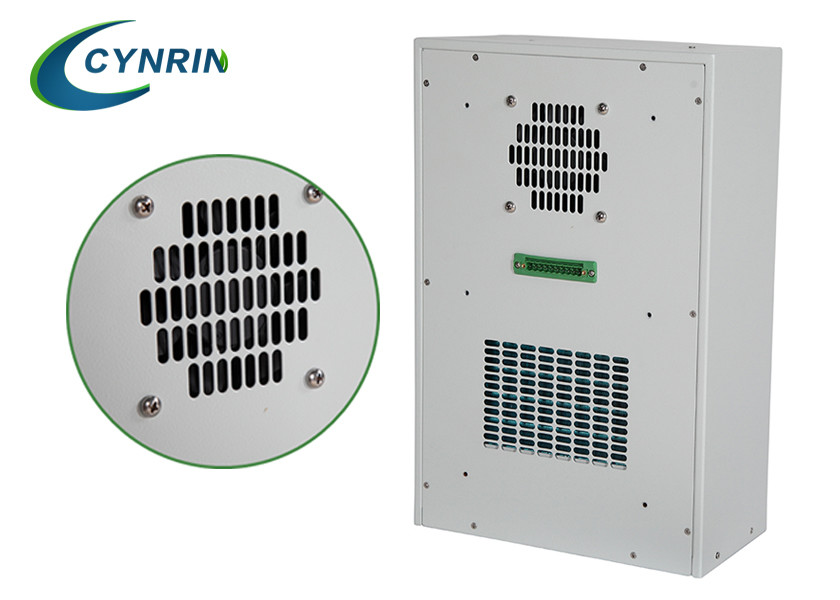

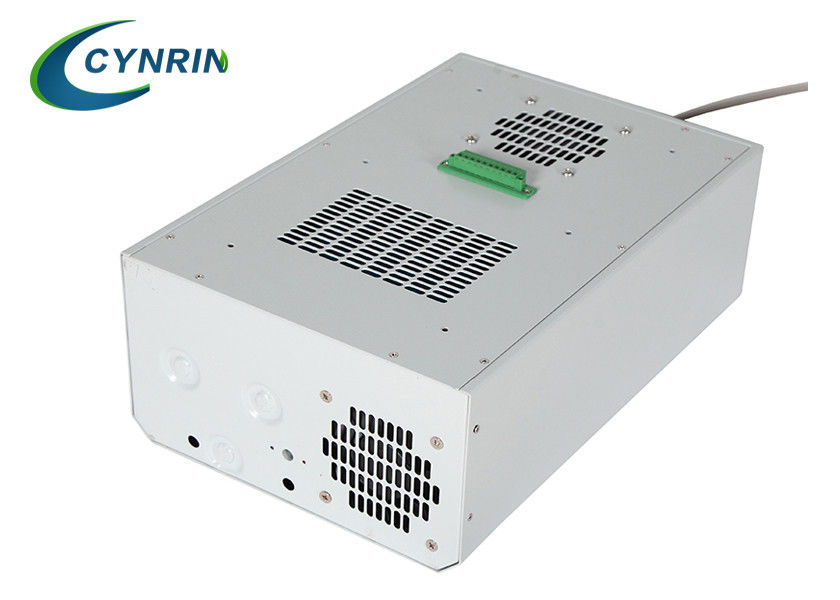

Telecommunication Base Station Special Air Conditioner Cooling Capacity: 300W~1000W .This Series are one of the products of Cynrin air conditioner family to be suitable for high efficiency, various power supply, green refrigerant, various installation methods, wide working range and safety etc. The product is a split unit with integrated free cooling system, includes indoor unit and outdoor unit. All the components of the unit are assembled in factory. All the tests are finished and all the control parameters are factory settings as default before leaving the factory.
48v direct current air conditioners are the perfect combination for off grid hybrid cabinets, shelters and enclosures because of the high efficient components that are selected.Energy saving cooling configurations for 48v Telecom enclosures.
Low consumption with a high cooling output
The very efficient DC powered direct current air conditioner combines a very low consumption with a high cooling output and is fully dc powered. The cooling duty of this fully DC powered unit is 2-3 higher than a normal 230 VAC and 6 times higher than a motor driven AC using with the same cooling and there is no power surge during start up.
Warm climate , high day and night temperatures , high humidity areas.
1. Unreliable grid or generator power using 1 standard AC air conditioner when the grid available or the generator is loading the batteries. 1 DC powered air conditioner in case of a grid power black- out or generator off (batteries loaded) Shelter 24 C-30C.
For a generator powers BTS station the running time of the Genset will go down with 50-60%.
2. Solar or wind powered. 2 DC Airco units in 1+1 configuration switched by inbuilt PLC
Remote alarms /logging available. Shelter temp 24-30C. The low consumption DC units use 2-3 less energy than a normal AC on a inverter. Power consumption 800 watt
Cooler climate – low temperatures during night and winter.
3. Grid or generator or solar wind powered using the energy efficient DC 10.000HA dc powered Air conditioners in warm weather and the free cooling at night and winter.
Switching set point can be set on DC12500 PLC. Consumption 200 or 600 Watt.
If you choose 30 C indoor ambient as switching point the outdoor temperature must be below 25C with 3,4 KW load and below 20C with a 6,8 kW load.
4. Using a powerful DC Airco free cooling for the shelter .Depending on the load the shelter temperature may go up 5 to 10 C above the outdoor ambient. ( 5 C with max 3,4 kW load and 10 C with max 6,8 kW load) Consumption 200Watt max.
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W*D*H 352*175*582mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension: W*D*H 900*900*2100mm Internal Dimension: W*D*H 800*800*1800mm (2) One compartment: equipment compartment (3)With one front door, and special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double wall with heat insulation, Sandwich structure panel |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 2000W, Power Supply: AC220V,60HZ; |
| 3 | Auxiliary Direct Ventilation Fans | 1 | PC | DC48V |
| 4 | Environment Monitoring Unit | 1 | Set | 1U, 19",SNMP |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Temperature and Humidity Sensor | 1 | PC | |
| 8 | Door Sensor | 2 | PC | One for controlling LED lamp, the other for open door alarm |
| 9 | LED Lamp | 1 | PC | DC48V |
| 10 | Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 Input Voltage: AC220V. |
| 11 | Rectifier System | 1 | Set | Model: GPE48120C (DC48V, 120A) Including: (1) 4×30A Rectifier Module; (2) 1× Monitoring Module; (3) Power distribution frame. |
| 12 | Package | 1 | Set |
Wooden Case |
| Cooling Capacity(L35/L35) | Product Model | Mounting Method | Dimension(W*D*H)mm | Dimension(W*D*H)mm Without flange | IP | Noise (dB A) | Certification |
| 300W | CCA003EA | Side- Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 400W | CCA004EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 500W | CCA005EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 600W | CCA006EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 800W | CCA008EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
| 1000W | CCA010EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
FAQ
1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.
2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.
3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.
4. Q: How about the warranty?
A: All the unit warranty is one year.
