| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CYNRIN |
| Certification: | UL, TUV |
| Model Number: | CRT35020 |
| Minimum Order Quantity: | 1000pcs |
| Price: | USD0.07-USD0.3 |
| Packaging Details: | Standard Abroad Carton Package. |
| Delivery Time: | 7 work days after payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 300000000pcs |

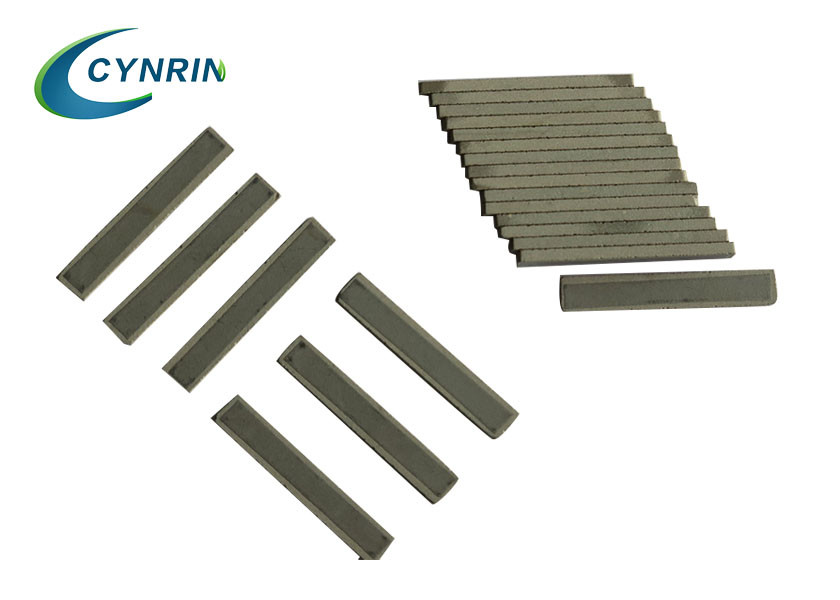

| Product Name: | Rectangular PTC Thermistor Heater | Voltage: | 12V,24V,48V,100V,110-120V,220-240V |
|---|---|---|---|
| Surface Temperature: | 80-240degree C | Electrode: | Aliminum Metallization |
| Resistance: | 5-2000ohms | Resistance Tolerance: | +-50% |
| Rated Power: | 5-100W | Temperature Coefficient: | Positive (PTC) |
| Operation Temperature: | -50 To 300 Deg.C | Application: | Hot Melting Guns, Vacuum Stealing Machine,Hair Straightener, |
| Highlight: | positive temperature coefficient heater,ptc resistor heaters |
||
PTC thermistors works rely on it's self-regulating effect as it's unique property
In heating applications, PTC offers long term stability while providing unmatched safety against overheating, unlike the traditional resistance coil heating element, PTC operates more efficiently and safely.
RoHS and UL approval
Ts can be from 80 degree C to 310 degree C.
| Model No. |
Dimension |
Ts |
Inrush |
Voltage |
Resistance (Ω) Resistant |
Certificate |
| (mm) | (℃) | (A) | (V) | |||
| JK080F3A1B | 24*15*2.5 | 115 | ≤3 | 100-240 | 200-2000 | UL/CUL |
| JK135F2C4B | 25*9*2.1 | 170 | ≤3 | |||
| JK185F3A1B | 24*15*2.5 | 215 | ≤3 | |||
| JK215F3B6B | 35*6*2.5 | 240 | ≤3 | |||
| JK235F2D2B | 23*13*2.1 | 260 | ≤4 | |||
| JK120F6A8A | 24*10*2.0 | 130 | ≤4 | 110-240 | ||
| JK140F2A2A | 24*13*2.1 | 160 | ≤4 | |||
| JK185F6A8A | 24*10*2.0 | 200 | ≤4 | |||
| JK190F3A1A | 24*15*2.5 | 200 | ≤4 | |||
| JK190F2A2A | 24*13*2.1 | 200 | ≤4 | |||
| JK220F3A1A | 24*15*2.5 | 235 | ≤4 | |||
| JK225F6A8A | 24*10*2.0 | 240 | ≤4 | |||
| JK240F2A5A | 24*8*2.1 | 250 | ≤4 | |||
| JK240F3A8A | 24*10*2.5 | 250 | ≤4 | |||
| JK240F2A1A | 24*15*2.1 | 250 | ≤4 | |||
| JK250F6A8A | 24*10*2.0 | 270 | ≤4 | |||
| JK210F3B2A | 35*13*2.5 | 220 | ≤4 | UL | ||
| JK180F3B2A | 35*13*2.5 | 190 | ≤4 | |||
| JK245F3A1B | 24*15*2.5 | 270 | ≤4 | |||
| JK245F8B2A | 35*13*2.3 | 270 | ≤4 | |||
| JK180F8B2A | 35*13*2.3 | 190 | ≤4 | |||
| JK240F6B2A | 35*13*2.0 | 260 | ≤4 | |||
| JK210F6B2A | 35*13*2.0 | 230 | ≤4 | |||
| JK190F6B2A | 35*13*2.0 | 200 | ≤4 | |||
| JK150F6B2A | 35*13*2.0 | 170 | ≤4 | |||
| JK245F8B8A | 35*10*2.3 | 270 | ≤4 | |||
| JK245F3B9A | 35*10*2.5 | 270 | ≤4 | |||
| JK190F2J8A | 33*10*2.1 | 200 | ≤4 | |||
| JK245F8K2A | 30*13*2.3 | 270 | ≤4 | |||
| JK225F8K2A | 30*13*2.3 | 245 | ≤4 | 110－240 | 200-2000 | UL |
| JK245F3B5A | 35*8*2.5 | 270 | ≤4 | |||
| JK210F5B6A | 35*6*2.7 | 220 | ≤4 | |||
| JK180F5B6A | 35*6*2.7 | 190 | ≤4 | |||
| JK150F5B6A | 35*6*2.7 | 160 | ≤4 | |||
| JK245F3B6A | 35*6*2.5 | 270 | ≤4 | |||
| JK245F8B7A | 35*6*2.3 | 270 | ≤4 | |||
| JK180F8B6A | 35*6*2.3 | 190 | ≤4 | |||
| JK240F6B6A | 35*6*2.0 | 260 | ≤4 | |||
| JK210F6B6A | 35*6*2.0 | 230 | ≤4 | |||
| JK190F6B6A | 35*6*2.0 | 200 | ≤4 | |||
| JK150F6B6A | 35*6*2.0 | 170 | ≤4 | |||
| JK245F3A2A | 24*13*2.5 | 270 | ≤4 | |||
| JK245F8A2A | 24*13*2.3 | 270 | ≤4 | |||
| JK245F3A8A | 24*10*2.5 | 270 | ≤4 | |||
| JK245F6A0A | 24*4*2.0 | 260 | ≤4 | |||
| JK170Y43A | ø12*2.5 | 190 | ≤4 | |||
| JK120Y43A | ø12*2.5 | 140 | ≤4 | |||
| JK190Y53A | ø8.5*2.5 | 210 | ≤4 | |||
| JK150Y53A | ø8.5*2.5 | 170 | ≤4 | |||
| JK110Y53A | ø8.5*2.5 | 130 | ≤4 | |||
| JK150F9I7A | 5*4*1.6 | 160 | ≤4 | 400-2000 | ||
| JK170F6B6A | 35*6*2.0 | 180±15％ | 12 | 220－240 | 200-2000 | TUV |
| JK200F6A8A | 24*10*2.0 | 210±10％ | 12 | |||
| JK215F6B6A | 35*6*2.0 | 225±10％ | 12 |
PTC thermistor heater can be assemble into a heating element with heating sink, heating plates and heating tubes for kinds of applications.
•Fan heating element for ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer etc.
•Heating plates for coffee makers, steam irons, cooking devices, facial sauna, humidifier etc.
•Tube heating elements for hot melting guns ,curing irons, wax-warmer, glue gun, dehumidifier etc.
•Other shapes of heating element can be used for mosquito repellent, liquid warmer, control devices etc.
What is your minimum order quantity?
At least 1000pcs for each item.
What is the delivery period?
About 20-25days, it is up to your order quantity.
What is your payment term?
T/T(30% before production and 70% before shipment),L/C,D/A, D/P, T/T, Western Union, MoneyGram, OA
Can you send free samples?
We can send free samples.
What is your shipping ways?
For sample we usually send by DHL, FEDEX, UPS, THT, EMS(taking 5-7business days). For mass product we are shipping by sea or by air.
