| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CYNRIN |
| Certification: | CE, CCC |
| Model Number: | CCA006EA |
| Minimum Order Quantity: | 1 sets |
| Price: | USD299~3999 unit |
| Packaging Details: | Wooden case package. |
| Delivery Time: | 14 work days after payment |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 10000 sets per Month |

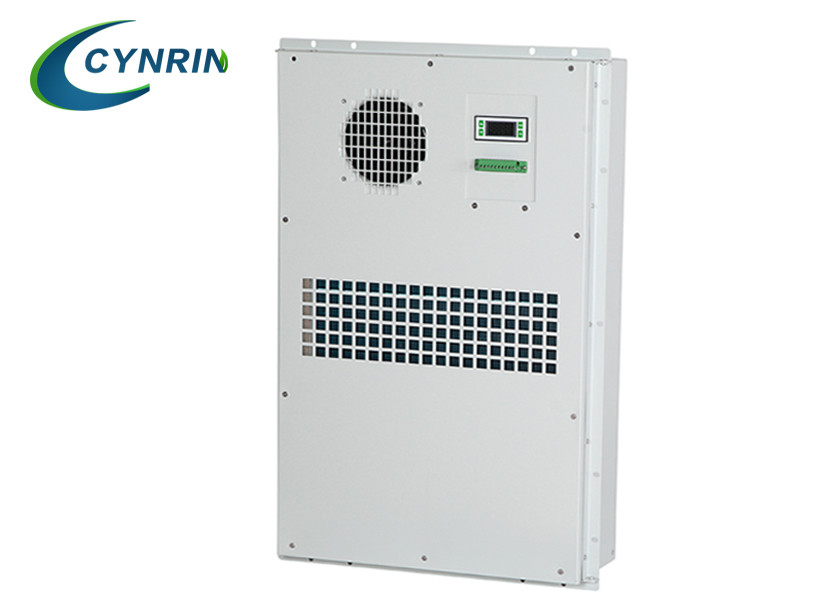

Electric Cabinet air conditioner is different from the traditional commercial and household air conditioning. With extremely high SEER, moisture condensation active control and other cut-edge technologies, it protects power and electronic equipment by providing precise temperature and humidity control. Since the product design and installation are originated from household air conditioners, it can be widely deployed in telecommunication outdoor base stations, power state outdoor cabinet, outdoor LED screen, where require the temperature level below than 35 degree situation. Cynrin provides the DC and AC power input type products according different power input.
Please note that the parameters provided below are for guidance only.
OEM /ODM are acceptable.Welcome to share your opinion with us.
| Product mode | CCA006EA | Unit |
| Dimensions(Without flange) | 352*175*583mm | mm |
| Weight | 20 | kg |
| Mounting method | Embedded | |
| Application temperature | -40-70 | ℃ |
| Working temperature | -15-55 | ℃ |
| Input voltage | 48VDC or AC 220V±15% 60Hz | |
| Cooling capacity L35/L35 | 600 | W |
| Heating | 500 | W |
| Power consumption L35/L35 | 160 | W |
| Airflow | 160m³/h | m3/h |
| IP grade | IP 55 | |
| Refrigerant | R134A | |
| Noise | 60 | dB (A) |
| Surface treatment | RAL7035 |
| Cooling Capacity(L35/L35) | Product Model | Mounting Method | Dimension(W*D*H)mm | Dimension(W*D*H)mm Without flange | IP | Noise (dB A) | Certification |
| 300W | CCA003EA | Side- Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 400W | CCA004EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 500W | CCA005EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 600W | CCA006EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 800W | CCA008EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
| 1000W | CCA010EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
| 1300W | CCA013EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 1500W | CCA015EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2000W | CCA020EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2300W | CCA023EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2500W | CCA025EA | Side-Embedded | 536*225*1201 | 485*225*1150 | 55 | 65 | CE,CCC |
| 3000W | CCA030EA | Side-Embedded | 536*225*1201 | 485*225*1150 | 55 | 65 | CE,CCC |
| 3500W | CCA035EA | Side-Embedded | 550*300*1350 | 500*300*1300 | 55 | 65 | CE,CCC |
| 4000W | CCA040EA | Side-Embedded | 550*300*1350 | 500*300*1300 | 55 | 65 | CE,CCC |
| 5000W | CCA050EA | Side-Embedded | 650*300*1350 | 650*300*1300 | 55 | 65 | CE,CCC |
| 7500W | CCA075EA | Side-Embedded | 711*350*1660 | 650*350*1600 | 55 | 65 | CE,CCC |
Dimension Diagram:
This Electric Panel Cabinet air conditioner can be widely used in enclosed area for climate control,such as telecom cabinet,battery cabinet,industry control cabinet etc.
● Indoor and Outdoor Hybrid Base station
● Indoor and Outdoor Battery Cabinet
● Wireless Indoor and Outdoor Cabinet
FAQ
1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.
2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.
3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.
4. Q: How about the warranty?
A: All the unit warranty is one year.
