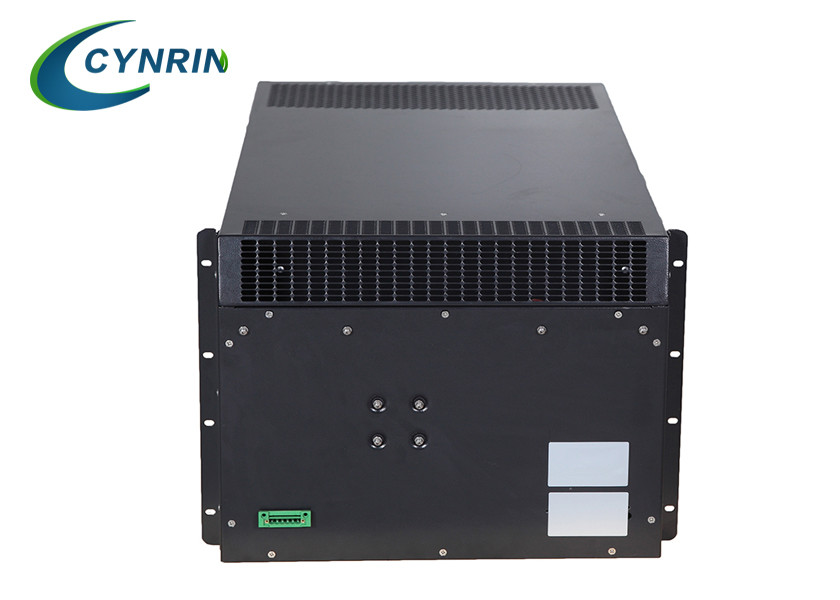

High Efficiency Server Room Cooling Units Side / Embedded Mounting Remote Control

Basic Information
Place of Origin: CHINA
Brand Name: CYNRIN
Certification: CE, CCC
Model Number: CSA050RA
Minimum Order Quantity: 1 sets
Price: USD1499.00~3999.00 unit
Packaging Details: Wooden case package.
Delivery Time: 7 work days after payment
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 80000 sets per year

5000W High Efficiency & Lower Cost Server Room Cooling Units for Server Rooms and Data Centers Rack Cooling Solutions


Product Characteristic



Cooling infrastructure is a significant part of a data center. The connection of chillers, compressors and air handlers create the optimal computing environment, ensuring the longevity of the servers, and the vitality of the organization they support.


Proudct Advantage



1. Dynamic refrigeration, adapt to the rapid change of machine room load.
2. Wth EC fan The air volume is adjusted automatically according the machine rooms power load.
3. Multiple external temperature and humidity sensors can be selected, adjust the refrigerating output in real time according to the actual heating of the server.
4. Cooling unit to be part of rack with compact design to realize on-shot cooling, no cooling energy been wasted, eventurally to realize highest effifiency operation.
5. Cooling unit can be fabricated and installed in RACK manufactures, to minimize work load at size installation.
6.Visualization digital display interface, key parameters can be adjusted on field.
7. Capacity base inner temp, and oputer temp.35℃-45%RH
8.Products applicable temperature range:-15℃-50℃



Features:





Specifications




Product Type RACK-EMBEDDED COOLING
Model No. CSA050RA
Extemal Dimensions(W*D*H) 483*840*355mm
Extemal Dimensions(W*D*H) without flange 440*840*355mm
Weight 42Kg
Working Temperature range -15 ℃ to +55 ℃
Noise Level 65dB(A)
Refrigerant R134a
Cooling Capacity @ L35/L35 2500W
Heating Capacity -
Rated power @ L35/L35 200W
Rated Voltage 220AC+-15% 50/60Hz
Interal Airflow 800m3/h
IP grade IP 55





Model Mounting method Input voltage Dimensions (Without flange)mm

Cooling capacity
(L35/L35).W

Certification
LSA035FA Split AC 220V

220*440*580mm
810*580*280mm

3500 CE,CCC
LSA035LA / 365*440*940mm 3500 CE,CCC
LSA050FA Split

indoor:2000*300*850mm
outdoor:810*580*280mm

5000 CE
LSA080FA Split

indoor:2000*300*850mm
outdoor:810*580*280mm

8000 CE



In-Rack Split type air conditioner details show

High Efficiency Server Room Cooling Units Side / Embedded Mounting Remote Control


High Efficiency Server Room Cooling Units Side / Embedded Mounting Remote Control





High Efficiency Server Room Cooling Units Side / Embedded Mounting Remote Control

Application

This kind air conditioner is specail for the data center, which is easily move and insert to the data equipment cabinet. And easy to maintaince.



 High Efficiency Server Room Cooling Units Side / Embedded Mounting Remote Control



High Efficiency Server Room Cooling Units Side / Embedded Mounting Remote Control



FAQ





1. Q: How about the air cooler material?

A: It makes by 100% new plastic, pure copper for motor.



2. Q: What voltages you can do, could you make special voltages?

A: we can make DC48 and all AC voltage products for you.



3. Q: I want to use our own brand, is it OK?

A: It is possible, we supply the OEM products too.



4. Q: How about the warranty?

A: All the unit warranty is one year.
