High Capacity Peltier Air Conditioner For Telecommunications Equipment

Basic Information
Place of Origin: CHINA
Brand Name: CYNRIN
Certification: CE
Model Number: LCT200ED
Minimum Order Quantity: 1 sets
Price: USD299~3999 unit
Packaging Details: Wooden case package.
Delivery Time: 7 work days after payment
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 100000 sets per year


200W Peltier thermoelectric Air Conditioner for Electronics Enclosures, Telecommunications Equipment and Battery Boxes


Product Characteristic


The LCT-200ED provides high cooling capacity in a narrow package. The overall dimensions are compact making it easy to get significant cooling capacity in a small space. The cooler is powered by 220 AC and is rated to maintain the enclosure’s NEMA 4 rating. The LCT-200ED is protected against harsh environments via an anodized external heat sink, stainless steel hardware, and an IP-68 rated external fan. The external fan is also speed controllable and has a tachometer output signal. Like all cooling assemblies from TE Technology (and unlike many coolers from competitive companies) the thermoelectric/Peltier elements have our epoxy potting and the assembly is sealed to reduce moisture ingress inside the cooler.


The LCT-200ED can also be used for heating, and two over-temperature thermostats are incorporated in the cooler (one on each set of fins). The thermostats are intended to provide a separate means of over-temperature protection for the cooler and equipment and can be monitored via the interlock feature on a  temperature controller or used to control the output inhibit line on a power supply. Please note these thermostats are NOT intended as a means of temperature control for the cooler or for direct switching of high-current loads.


Peltier Air Conditioner Features


• High Capacity: Removes 200 W of heat in a 35 °C ambient at a 0 °C temperature difference.
• Narrow 150 mm (5.9″) overall width.
• Protected against harsh environments — meets NEMA 4 and IP68 (external fan) specifications.
• Powered by 220 VDC,other voltage is available.
• All wiring is accessible from inside the enclosure.
• Internal fan blows air into the center of the enclosure so cooled air can be aimed at components that need the most cooling.
• Cools up to 44 °C below ambient in a 25 °C environment.
• Can be used for heating and cooling (requires heat/cool controller).
• Over-temperature thermostats included on both fin sets (signal level only).
• Operating temperature range is -20°C to +70 °C.
• External fan can be speed controlled with the TC-720 temperature controller for improved efficiency and/or reduced noise.
• External fan has a tachometer output signal.
• CE marked and RoHS compliant.





Cooling capacity Product model Mounting type Dimension (without Flange) IP Noise (dB A) Certification
200W LCT200ED Embedded 400*200*178mm 55 55 CE
300W LCT300ED Embedded 400*200*178mm 55 55 CE

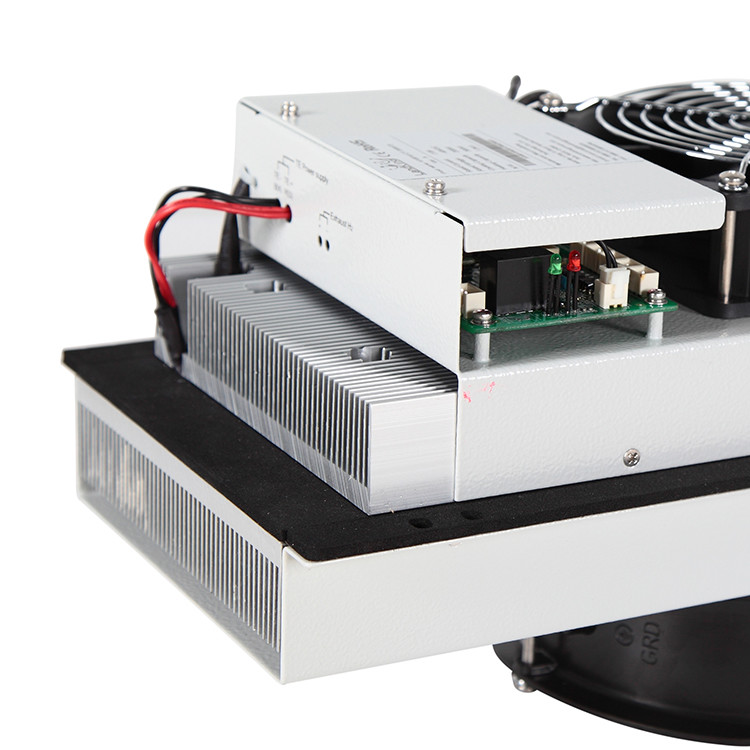

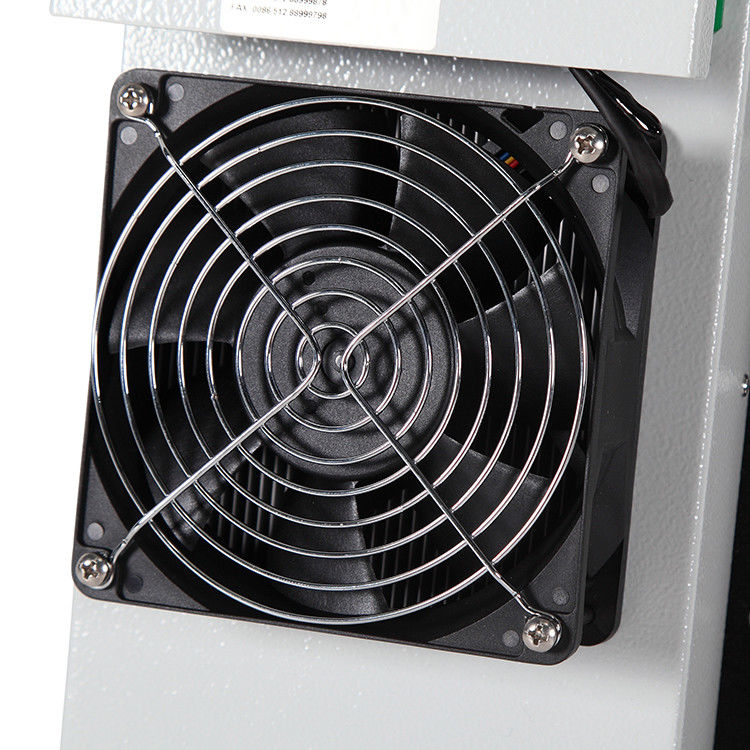

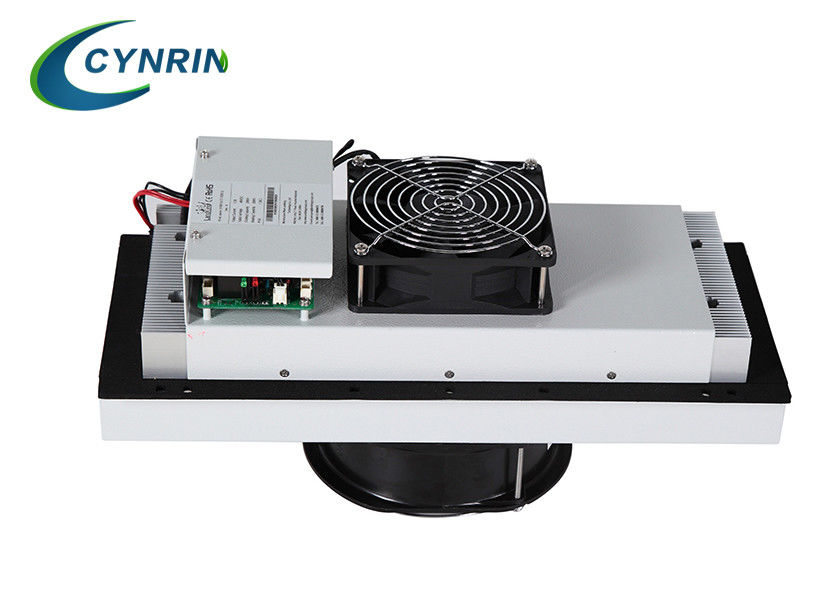

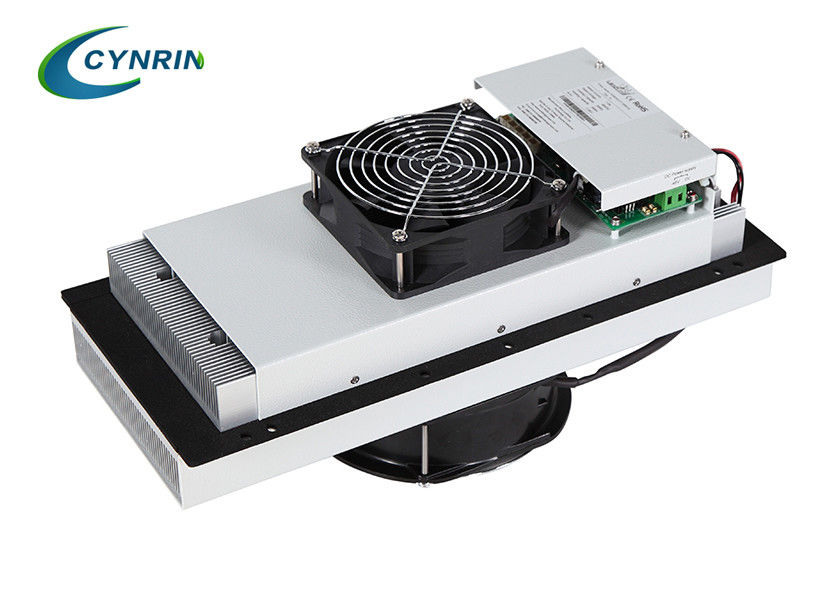

DC air conditioner details show

High Capacity Peltier Air Conditioner For Telecommunications Equipment

 High Capacity Peltier Air Conditioner For Telecommunications Equipment



  • Small Space Cooling;
  • Compact Air Conditioning;
  • Portable & compact cycle cooling;
  • Cabins, cuddy cabins and electric vehicles;
  • Carriage cooling for trucks and other specialized vehicles


High Capacity Peltier Air Conditioner For Telecommunications Equipment







1. Q: How about the air cooler material?

A: It makes by 100% new plastic, pure copper for motor.


2. Q: What voltages you can do, could you make special voltages?

A: we can make DC48 and all AC voltage products for you.


3. Q: I want to use our own brand, is it OK?

A: It is possible, we supply the OEM products too.


4. Q: How about the warranty?

A: All the unit warranty is one year.
