| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CYNRIN |
| Certification: | CE, CCC |
| Model Number: | CCA030EA |
| Minimum Order Quantity: | 1 sets |
| Price: | USD300~3999 unit |
| Packaging Details: | Wooden case package. |
| Delivery Time: | 14 work days after payment |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 100000 sets per year |
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.
The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner on cabinet door.
The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.
4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

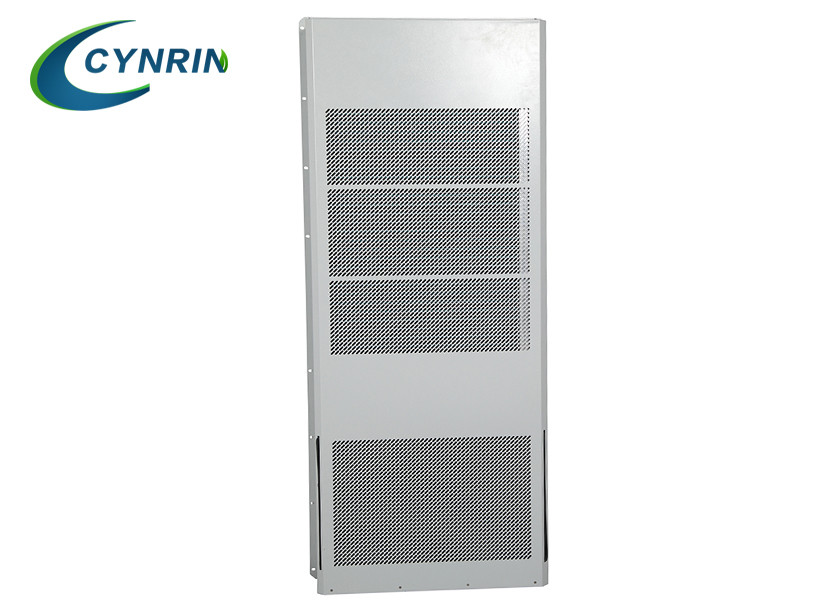

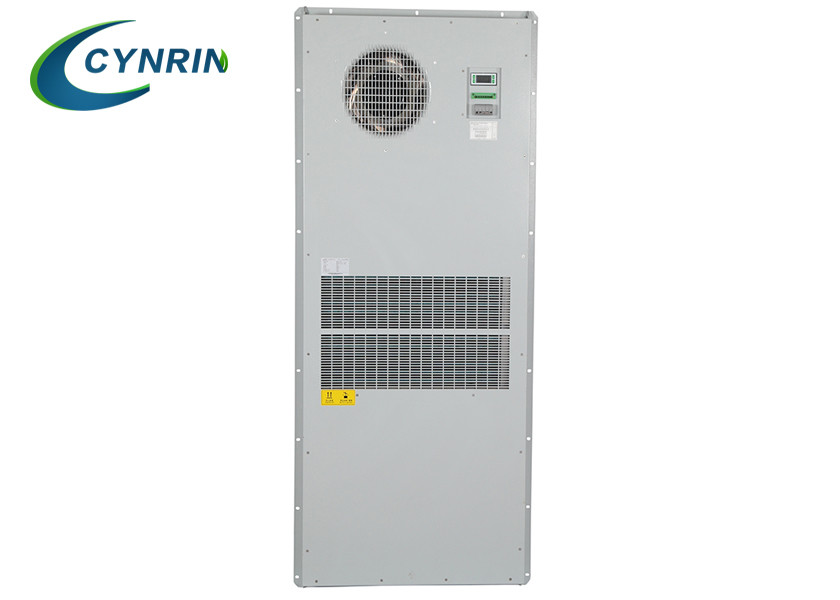

4.2 The cabinet cooling uses air conditioner.
4.3 Including -48VDC illumination lamp.
4.4 The cabinet includes power and environment monitoring unit, which can send power failure alarm, door open alarm, temperature and humidity alarm, smoke alarm, water alarm etc.
4.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
4.6 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
4.7 The cabinet includes 19” standard installation rack.
Operating temperature: -40°C ~ + 45°C
Storage temperature: -25°C ~ + 55°C
Transport temperature: -40°C ~ + 70°C
Relative humidity (RH): 5%~99%
Air pressure: 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)
| Cooling Capacity(L35/L35) | Product Model | Mounting Method | Dimension(W*D*H)mm | Dimension(W*D*H)mm Without flange | IP | Noise (dB A) | Certification |
| 1300W | CCA013EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 1500W | CCA015EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2000W | CCA020EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2300W | CCA023EA | Side-Embedded | 482*200*782 | 445*200*745 | 55 | 65 | CE,CCC |
| 2500W | CCA025EA | Side-Embedded | 536*225*1201 | 485*225*1150 | 55 | 65 | CE,CCC |
| 3000W | CCA030EA | Side-Embedded | 536*225*1201 | 485*225*1150 | 55 | 65 | CE,CCC |
Specification
1 . Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W*D*H 482*200*782mm,536*225*1201mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Welded or assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
2. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Size H×W×D 482*200*782mm,536*225*1201mm (2) One compartment; (3) With one front door; with anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 20mm heat insulation between two walls |
| 2 | Air Conditioner | 1 | Set |
Power Supply: AC220V, 50-60Hz Cooling Capacity: 1300-3000W Model: CCA013EA to CCA030EA |
| 3 | Fans | 2 | PC | 12038, DC48V |
| 4 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4. Height: 4U |
| 5 | Environment Monitoring System | 1 | Set |
1× environment monitoring unit; 1× smoke sensor, 1×water sensor, 1× temperature&humidity sensor, 2× door sensor. |
| 6 | LED Lamp | 1 | Pc | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
The Outdoor Telecom Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
FAQ
1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.
2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.
3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.
4. Q: How about the warranty?
A: All the unit warranty is one year.
