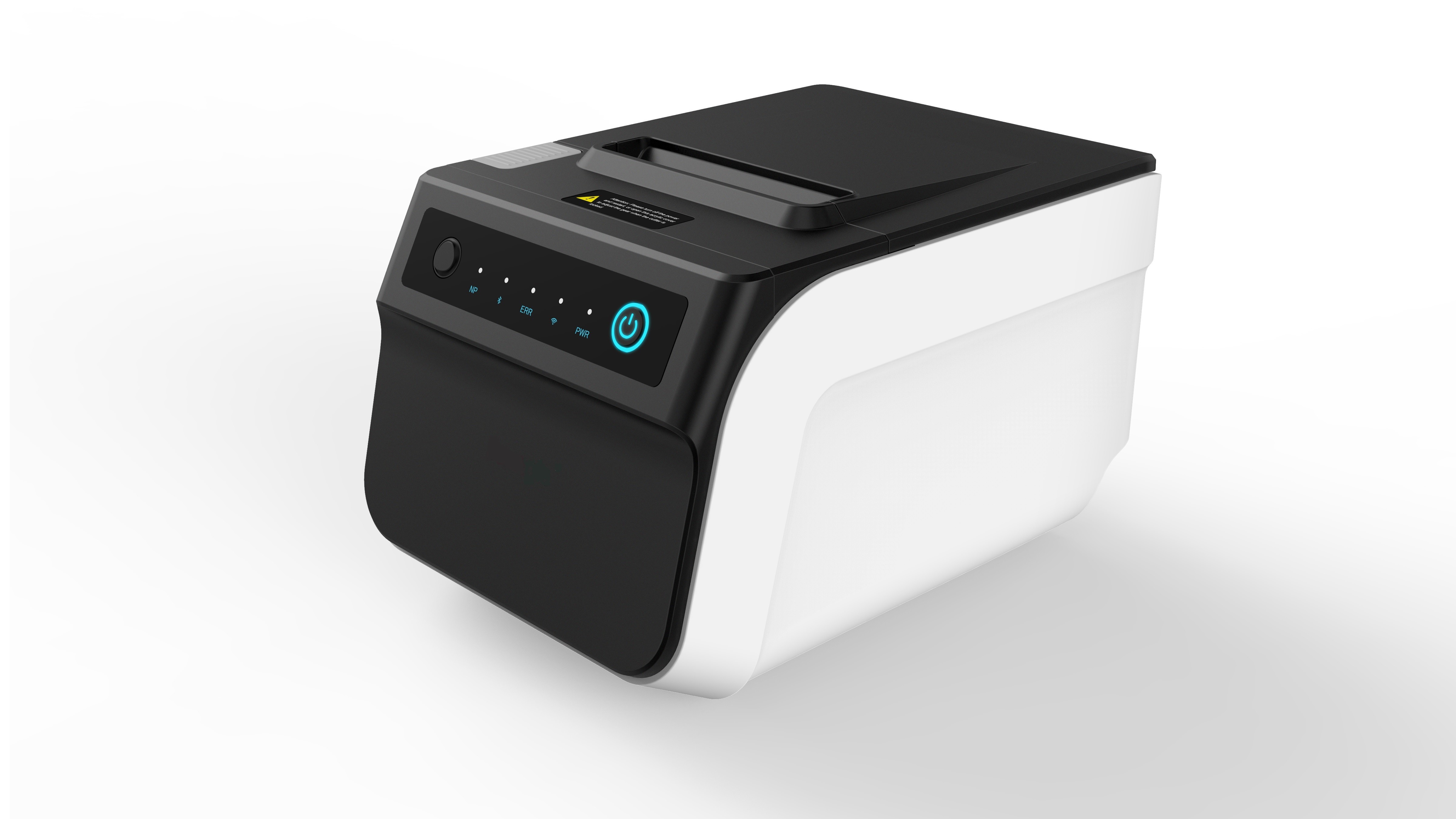

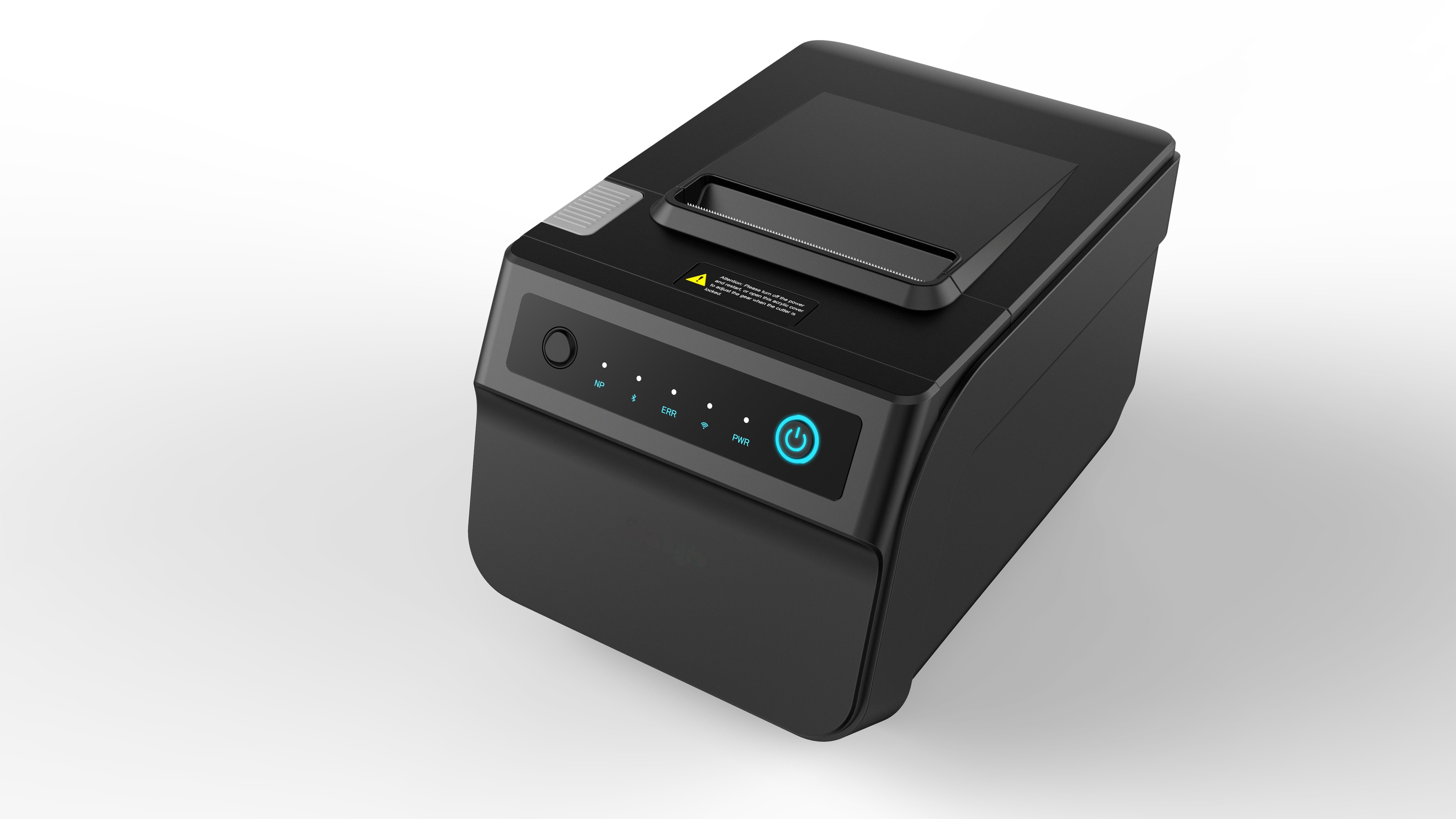

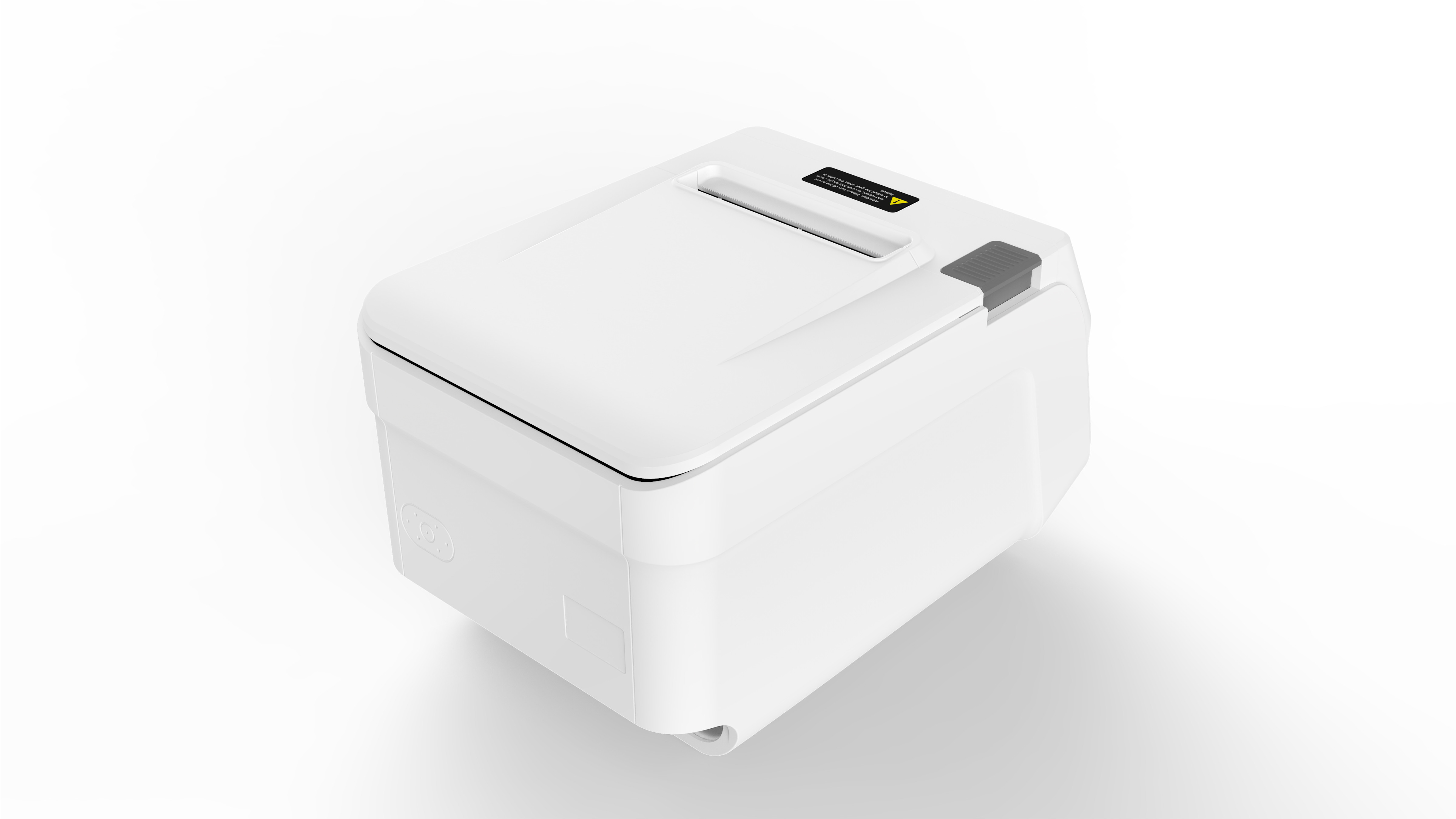

Bluetooth Thermal Transfer Printer , Portable Direct Thermal Receipt Printer
Model | YX801 | |||||
Product Description | 3" Receipt Printer 58+80mm | |||||
Effective Printing Width | 72mm or 48mm | |||||
Printing Method | Thermal Line Printing | |||||
Resolution | 203dpi | |||||
Printing Speed | 300mm/sec (Max) | |||||
Printing Density | 504dot/line or 576dot/line | |||||
Paper Spec |
Paper Width | 79.5±0.5mm | ||||
Paper Roll Diameter | Φ80mm | |||||
Paper supply method | Easy paper loading | |||||
Memory |
Flash | 4Mbytes | ||||
SDRAM | 16Mbytes | |||||
Charater |
Size |
Font A | 12 x 24 | |||
Font B | 9 x 24 9 x 17 | |||||
Column Capacity | Font A | 48 or 56 | ||||
Font B | Alphanumeric Characters: 95 | |||||
Character Set |
Extended Characters: 128 x 30 Page | |||||
International Characters: 32 | ||||||
Barcode |
UPC-A,UPC-C,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128, QR code | |||||
PC437,Katakana,PC850,PC860, PC863,PC865,WPC1252,PC866,PC852,PC858 | ||||||
SDK | iOS SDK, Android SDK | |||||
Driver | Windows CE SDK, Windows 10, Windows 7, Windows 8Windows XP/ VISTA/ 7/ 8/ 8.1/10 Linux, Android OS and Mac | |||||
Interface |
USB+RS232+LAN |
USB+LAN +Bluetooth |
USB+RS232+LAN +WIFI |
USB+RS232+LAN +WIFI+Bluetooth |
||
Printing command | ESC/POS/OPOS | |||||
Environment |
Temperature | Operating:0~45℃, Stock:-10~50℃ | ||||
Humidity | Operating:10-80%, Stock:10-90%(exclude paper roll) | |||||
Dimensions | 145 (W) x 215 (D) x 135 (H) mm | |||||
Auto Cutter | 2,000,000 | |||||
Weight | 2.5KG | |||||
Power |
Input | AC 100V ~ 240V, 50Hz ~ 60Hz | ||||
Output | DC 24V, 2.5A | |||||
Cash drawer Port control | DC 24V,1A | |||||
Color | Black,White,Silvery,Gold,Green |
Cynrin portable 80mm thermal transfer printer pairs the fastest print speeds with the most complete feature set of our desktop printer lineup. Innovative label, receipt and tag-handling capabilities enable the flexibility you need. Offering top print quality and a high print speed. This model connects via USB, serial, parallel, or ethernet port making set up a breeze. It supports the widest range of applications and can be integrated into almost any environment so that you can improve efficiency and profitability, save time and reduce operator training.
portable handheld printer
1.Restaurants,
2.Department Stores,
3.Kitchen,
4.Convenience Stores,
5.Specialty Retail,
6.Supermarket
