| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CYNRIN |
| Certification: | CE, CCC |
| Model Number: | CCA00XEA |
| Minimum Order Quantity: | 1 sets |
| Price: | USD499.00~3999.00 unit |
| Packaging Details: | Wooden case package. |
| Delivery Time: | 7 work days after payment |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
| Supply Ability: | 80000 sets per year |
Product Characteristic

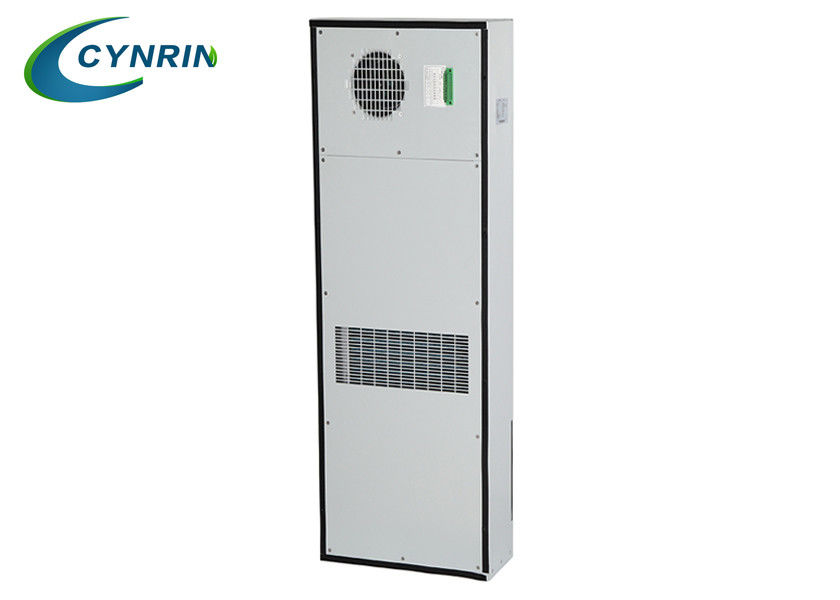

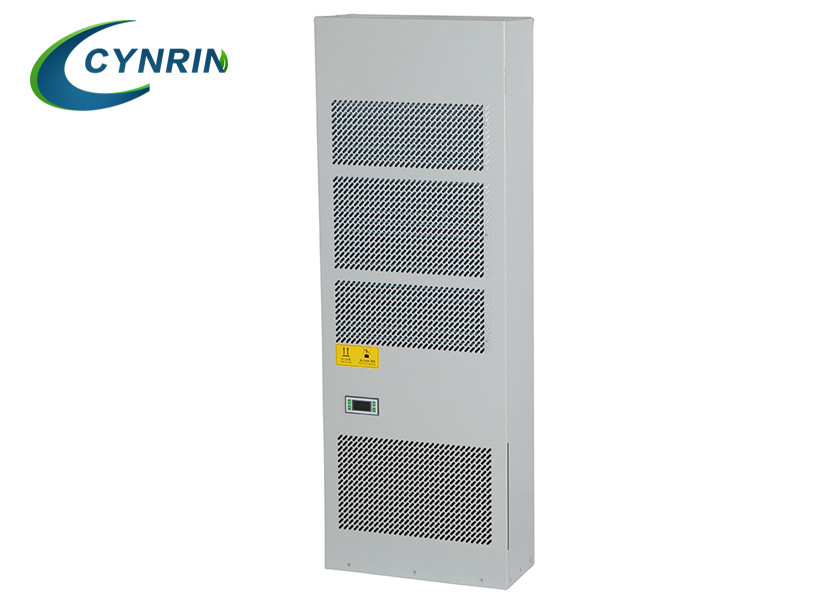

Telecommunication Base Station Special Air Conditioner Cooling Capacity: 300W~1000W .This Series are one of the products of Cynrin air conditioner family to be suitable for high efficiency, various power supply, green refrigerant, various installation methods, wide working range and safety etc. The product is a split unit with integrated free cooling system, includes indoor unit and outdoor unit. All the components of the unit are assembled in factory. All the tests are finished and all the control parameters are factory settings as default before leaving the factory.
DC Air Conditioners are soft starting and avoid the typical start-up inrush current as seen by AC compressor drives. It is built to run on battery backup, thereby ensuring full site uptime and ensuring site income, also during power outage.
The safety feature: low voltage disconnect prolongs battery life in case of low voltage from batteries and the Dantherm DC Air Conditioners are therefore highly suitable sites with battery back-up power and hybrid sites powered with renewable energy sources such as Photo Voltic - solar, wind, fuel cells or hydro.
Because our DC Air Conditioners are capacity regulated, they only provide the exact amount of cooling needed. This means that they are much more efficient in use than traditional air conditioners, inverter based DC Air conditioners and even traditional DC Air Conditioners.
The DC Air conditioner line is designed for cooling of equipment in challenging outdoor environments and consists of quality components to ensure the long service life demanded by leading Telecom companies - knowing that a telecom network is dependent on sites running 24-7-365 under any ambient conditions.
The version is designed especially for battery cooling with a set cooling point of 25°C, small and compact for easy installation.
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W*D*H 352*175*582mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension: W*D*H 900*900*2100mm Internal Dimension: W*D*H 800*800*1800mm (2) One compartment: equipment compartment (3)With one front door, and special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double wall with heat insulation, Sandwich structure panel |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 2000W, Power Supply: AC220V,60HZ; |
| 3 | Auxiliary Direct Ventilation Fans | 1 | PC | DC48V |
| 4 | Environment Monitoring Unit | 1 | Set | 1U, 19",SNMP |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Temperature and Humidity Sensor | 1 | PC | |
| 8 | Door Sensor | 2 | PC | One for controlling LED lamp, the other for open door alarm |
| 9 | LED Lamp | 1 | PC | DC48V |
| 10 | Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 Input Voltage: AC220V. |
| 11 | Rectifier System | 1 | Set | Model: GPE48120C (DC48V, 120A) Including: (1) 4×30A Rectifier Module; (2) 1× Monitoring Module; (3) Power distribution frame. |
| 12 | Package | 1 | Set |
Wooden Case |
| Cooling Capacity(L35/L35) | Product Model | Mounting Method | Dimension(W*D*H)mm | Dimension(W*D*H)mm Without flange | IP | Noise (dB A) | Certification |
| 300W | CCA003EA | Side- Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 400W | CCA004EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 500W | CCA005EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 600W | CCA006EA | Side-Embedded | 352*175*583 | 315*175*546 | 55 | 60 | CE,CCC |
| 800W | CCA008EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
| 1000W | CCA010EA | Side-Embedded | 482*175*782 | 445*175*745 | 55 | 65 | CE,CCC |
FAQ
1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.
2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.
3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.
4. Q: How about the warranty?
A: All the unit warranty is one year.
