220V Industrial Enclosure Cooling , Electrical Enclosure Cooling System

Basic Information
Place of Origin: CHINA
Brand Name: CYNRIN
Certification: CE, CCC
Model Number: CCA040EA
Minimum Order Quantity: 1 sets
Price: USD499.00~3999.00 unit
Packaging Details: Wooden case package.
Delivery Time: 7 work days after payment
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 80000 sets per year

Electric Industrial Enclosure Air Cooling Units for Kinds of Industrial Machine


Product Characteristic


Cynrin enclosure air conditioners are designed to maintain the temperature inside an electrical enclosure or below a safe level for the enclosed equipment, while maintaining a closed loop environment inside the enclosure to keep out contaminates in the ambient air. Designed to maintain the temperature inside an electrical enclosure at or below a safe level for the enclosed equipment, while maintaining a closed loop environment inside the enclosure to keep out contaminates that can be in the ambient air. Can be used in environments such as steel,food processing, petro-chemical, cement, paper/pulp and plastics industries, provided there are no corrosive gases or liquids that could damageinternal components.



Features:



Proudct Advantage


   Cynrin's portable air conditioner series provides supplemental or instant emergency back-up cooling to protect your critical equipment during a heat-related crisis. With a trend towards smaller, more "heat dense" servers, equipment shutdowns may be more likely to occur as your existing server room air conditioner system becomes inadequate.

1. Modular design and can be customized designed.
2. Low noise, high cooling efficiency and corrosion resistant.
3. Small size for built-in advertising screen.
4. With special air channel and big air flow design, applied to signal or double screens application


Specifications

1. Input voltage: AC220V
2. Communication Interface: RS485
3. Alarm output: Dry connect
4. Emergency hydrogen discharge design: standard option
5. Temperature and humidity signal output: optional
6. IP level: IP55
7. Refrigeration: R134a
8. Working temperature: -40℃~+55℃




Cooling Capacity(L35/L35) Product Model Mounting Method Dimension(W*D*H)mm Dimension(W*D*H)mm Without flange IP Noise (dB A) Certification
300W CCA003EA Side- Embedded 352*175*583 315*175*546 55 60 CE,CCC
400W CCA004EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
500W CCA005EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
600W CCA006EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
800W CCA008EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC
1000W CCA010EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC
1300W CCA013EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
1500W CCA015EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2000W CCA020EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2300W CCA023EA Side-Embedded 482*200*782 445*200*745 55 65 CE,CCC
2500W CCA025EA Side-Embedded 536*225*1201 485*225*1150 55 65 CE,CCC
3000W CCA030EA Side-Embedded 536*225*1201 485*225*1150 55 65 CE,CCC
3500W CCA035EA Side-Embedded 550*300*1350 500*300*1300 55 65 CE,CCC
4000W CCA040EA Side-Embedded 550*300*1350 500*300*1300 55 65 CE,CCC
5000W CCA050EA Side-Embedded 650*300*1350 650*300*1300 55 65 CE,CCC
7500W CCA075EA Side-Embedded 711*350*1660 650*350*1600 55 65 CE,CCC




Product Details

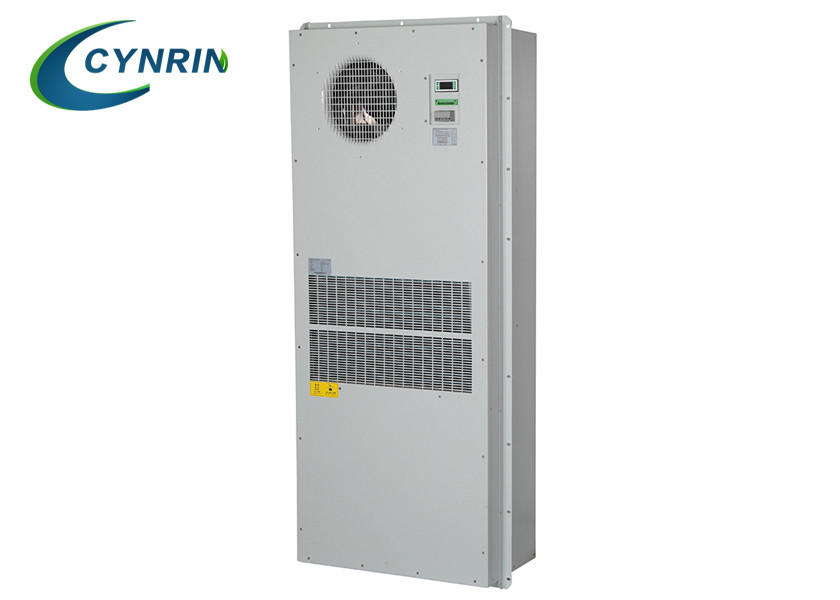

220V Industrial Enclosure Cooling , Electrical Enclosure Cooling System

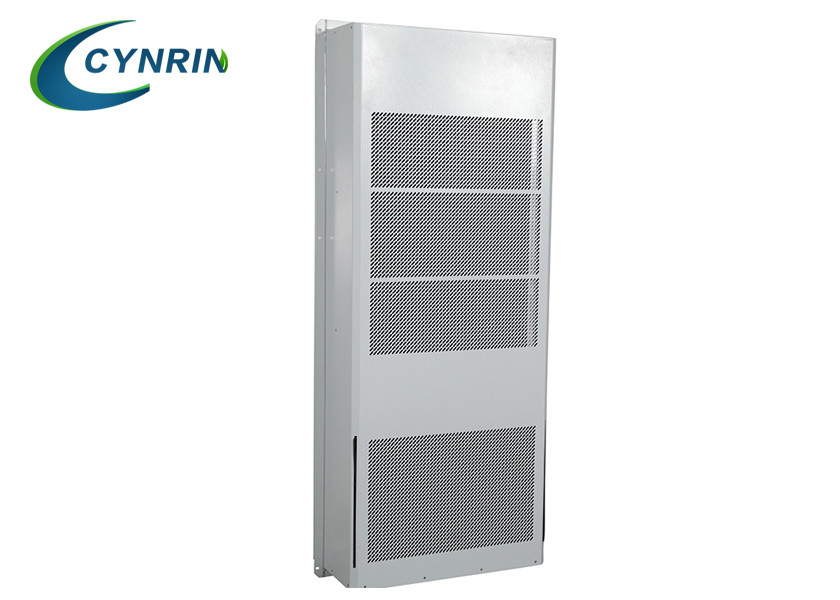

220V Industrial Enclosure Cooling , Electrical Enclosure Cooling System

Application

This kind air conditioner is specail for Telecom, Electric power, Machinery, Textile, Transportation, Automobile, Petroleum, Chemical, Metallurgy and Advertising, which is easily move and insert to the data equipment cabinet. And easy to maintaince.

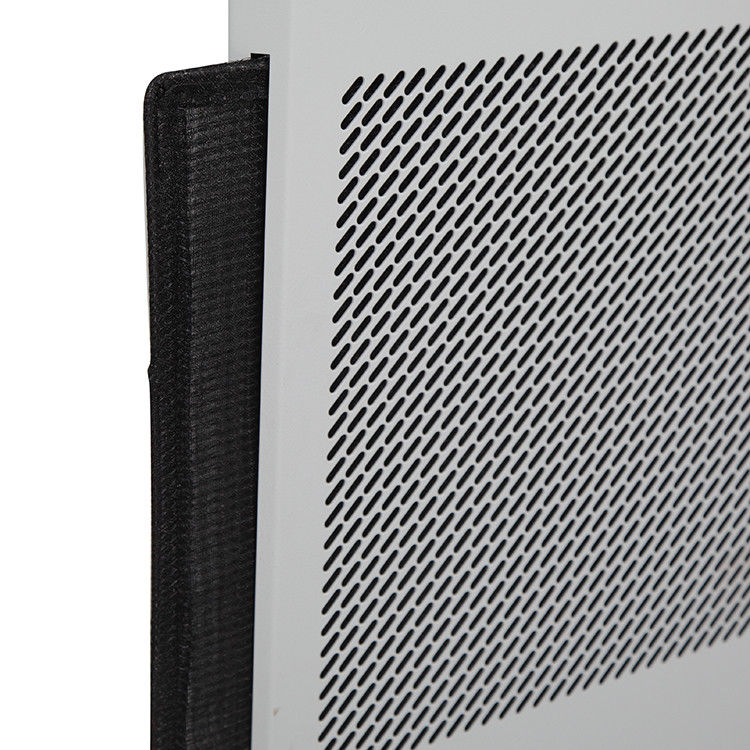

220V Industrial Enclosure Cooling , Electrical Enclosure Cooling System

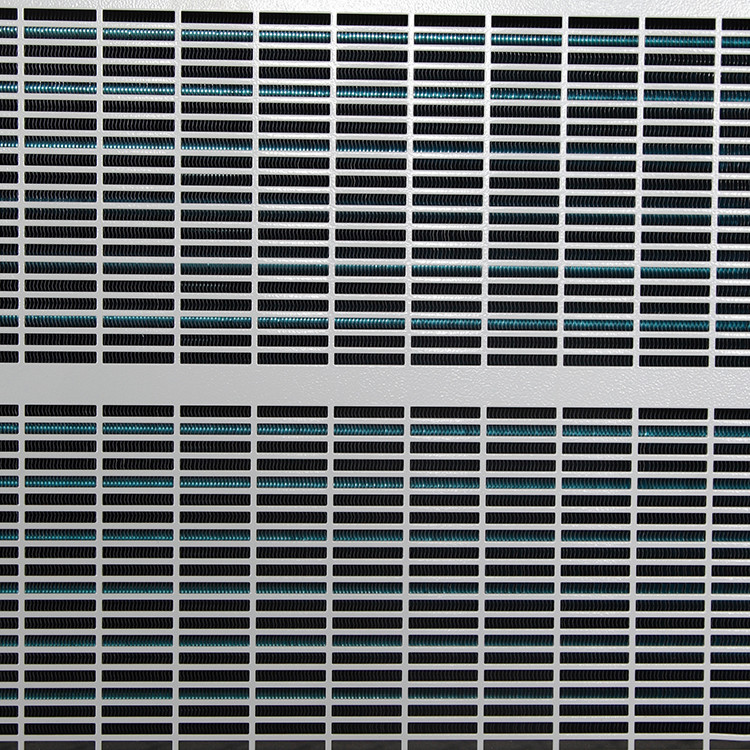

220V Industrial Enclosure Cooling , Electrical Enclosure Cooling System



FAQ



1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.

2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.

3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.

4. Q: How about the warranty?
A: All the unit warranty is one year.
