Energy Saving Computer Room Air Conditioner , Enclosure Cooling System

Basic Information
Place of Origin: CHINA
Brand Name: CYNRIN
Certification: CE, CCC
Model Number: CCA00YEA
Minimum Order Quantity: 1 sets
Price: USD499.00~3999.00 unit
Packaging Details: Wooden case package.
Delivery Time: 7 work days after payment
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 80000 sets per year

Environmentally friendly Air Conditioning Power Energy saving cooling configurations for Telecom enclosures


Product Characteristic

 Telecommunication Base Station Special Air Conditioner Cooling Capacity: 300W~1000W .This  Series are one of the products of Cynrin air conditioner family to be suitable for high efficiency, various power supply, green refrigerant, various installation methods, wide working range and safety etc. The product is a split unit with integrated free cooling system, includes indoor unit and outdoor unit. All the components of the unit are assembled in factory. All the tests are finished and all the control parameters are factory settings as default before leaving the factory.






Product Advantage

  • Low carbon footprint
  • Low energy use compared to CO2
  • Low operational cost
  • Factory pressure tested with Hydrogen (leak free)
  • Uses refrigerant gas with the minimal environmental impact


Technical Parameters


Item Type Technical Parameter
Structure Dimension
External Dimension: W*D*H 352*175*582mm

Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2





Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set (1) External Dimension: W*D*H 900*900*2100mm
Internal Dimension: W*D*H 800*800*1800mm (2) One compartment: equipment compartment
(3)With one front door, and special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double wall with heat insulation, Sandwich structure panel
2 Air Conditioner 1 Set Cooling capacity: 2000W,
Power Supply: AC220V,60HZ;
3 Auxiliary Direct Ventilation Fans 1 PC DC48V
4 Environment Monitoring Unit 1 Set 1U, 19",SNMP
5 Water Sensor 1 PC
6 Smoke Sensor 1 PC
7 Temperature and Humidity Sensor 1 PC
8 Door Sensor 2 PC One for controlling LED lamp, the other for open door alarm
9 LED Lamp 1 PC DC48V
10 Power Distribution Unit 1 Set Grade B Lightning Proof
AC Input: 63A/2P *1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4
Input Voltage: AC220V.
11 Rectifier System 1 Set Model: GPE48120C (DC48V, 120A)
Including:
(1) 4×30A Rectifier Module;
(2) 1× Monitoring Module;
(3) Power distribution frame.
12 Package 1 Set

Wooden Case




Standard Modle List




Cooling Capacity(L35/L35) Product Model Mounting Method Dimension(W*D*H)mm Dimension(W*D*H)mm Without flange IP Noise (dB A) Certification
300W CCA003EA Side- Embedded 352*175*583 315*175*546 55 60 CE,CCC
400W CCA004EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
500W CCA005EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
600W CCA006EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
800W CCA008EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC
1000W CCA010EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC





Product Details

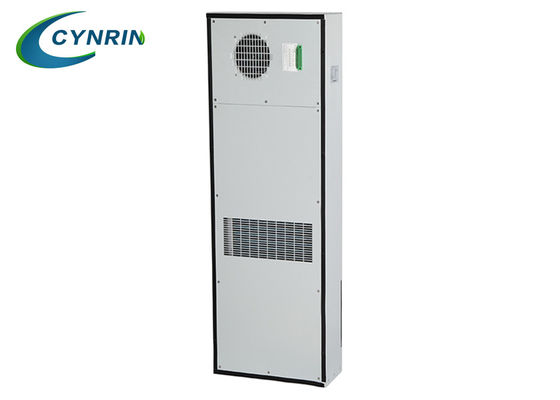

Energy Saving Computer Room Air Conditioner , Enclosure Cooling System

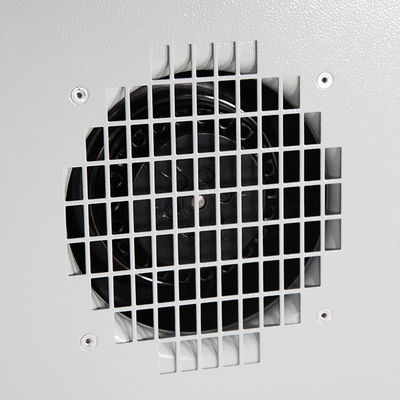

Energy Saving Computer Room Air Conditioner , Enclosure Cooling System

Application

This kind air conditioner is specail for Telecom, Electric power, Machinery, Textile, Transportation, Automobile, Petroleum, Chemical, Metallurgy and Advertising, which is easily move and insert to the data equipment cabinet. And easy to maintaince.

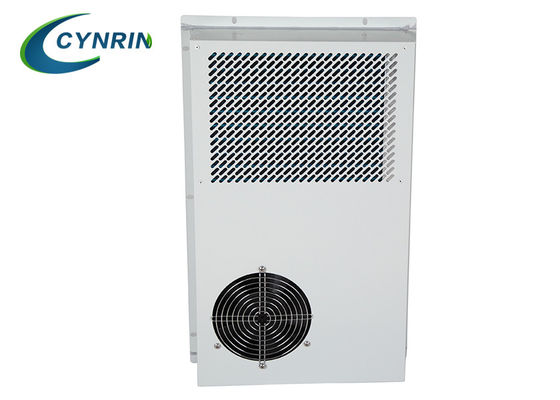

Energy Saving Computer Room Air Conditioner , Enclosure Cooling System




FAQ



1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.

2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.

3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.

4. Q: How about the warranty?
A: All the unit warranty is one year.
