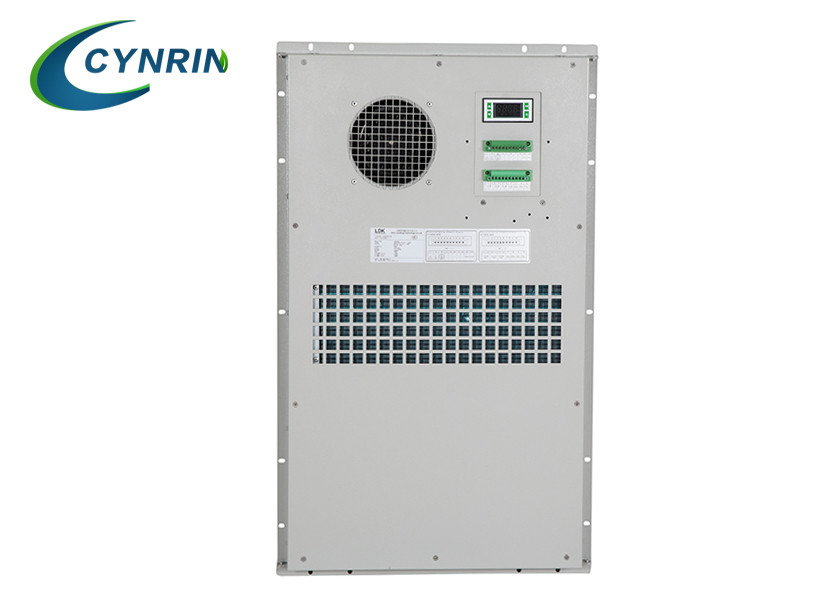

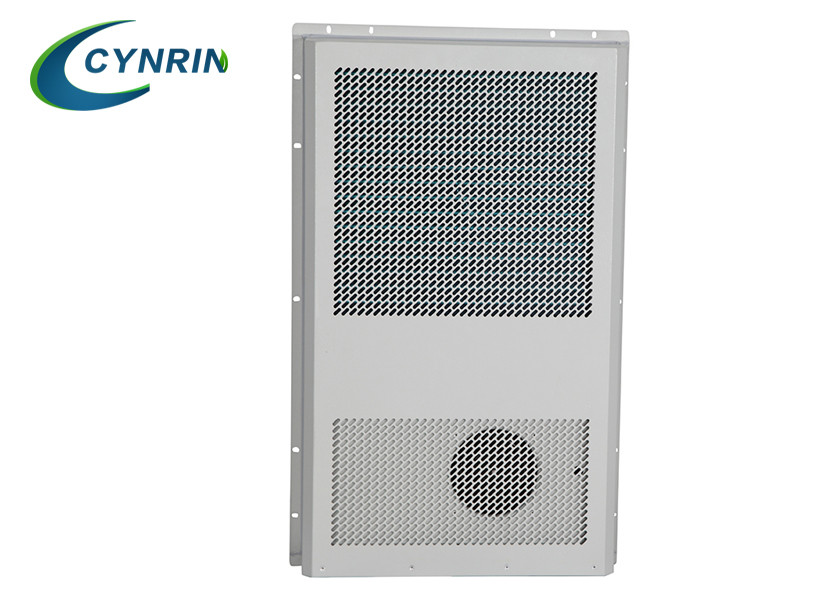

220V Enclosure Air Conditioner , DC Air Conditioning System Easy Integration

Basic Information
Place of Origin: CHINA
Brand Name: CYNRIN
Certification: CE, CCC
Model Number: CCA00XEA
Minimum Order Quantity: 1 sets
Price: USD499.00~3999.00 unit
Packaging Details: Wooden case package.
Delivery Time: 7 work days after payment
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 80000 sets per year

Telecommunication Base Station Special Air Conditioner from 300W to 1000W.




Product Characteristic




Air Conditioner for Telecommunication Base Station Cooling Capacity:300W~1000W, These air conditioner family  meets high requirement of high efficiency various power supplies, green refrigerant, various installation methods, wide working range and safety etc. The unit is integrated with the newest technology and advantages in modern time, supplying a value over the desire of customer. The product is a packaged unit for indoor installation, integrated with refrigeration system, free cooling system and control system. All the components of the unit are assembled and tested in factory. And all the control parameters are factory settings as default before leaving the factory. So, after the unit is installed on site, it can be used once the power is supplied.







Product Features

  • Telecom site uptime during power outage/intermittent power

       DC Air Conditioners are soft starting and avoid the typical start-up inrush current as seen by AC compressor drives. It is built to run on battery backup, thereby ensuring full site uptime and ensuring site income, also during power outage.



  • Energy-efficient DC cooling

     Because our DC Air Conditioners are capacity regulated, they only provide the exact amount of cooling needed. This means that they are much more efficient in use than traditional air conditioners, inverter based DC Air conditioners and even traditional DC Air Conditioners.



  • Cooling in challenging outdoor environments

    The DC Air conditioner line is designed for cooling of equipment in challenging outdoor environments and consists of quality components to ensure the long service life demanded by leading Telecom companies - knowing that a telecom network is dependent on sites running 24-7-365 under any ambient conditions.



Technical Parameters


Item Type Technical Parameter
Structure Dimension
External Dimension: W*D*H 352*175*582mm

Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2





Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set (1) External Dimension: W*D*H 900*900*2100mm
Internal Dimension: W*D*H 800*800*1800mm (2) One compartment: equipment compartment
(3)With one front door, and special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double wall with heat insulation, Sandwich structure panel
2 Air Conditioner 1 Set Cooling capacity: 2000W,
Power Supply: AC220V,60HZ;
3 Auxiliary Direct Ventilation Fans 1 PC DC48V
4 Environment Monitoring Unit 1 Set 1U, 19",SNMP
5 Water Sensor 1 PC
6 Smoke Sensor 1 PC
7 Temperature and Humidity Sensor 1 PC
8 Door Sensor 2 PC One for controlling LED lamp, the other for open door alarm
9 LED Lamp 1 PC DC48V
10 Power Distribution Unit 1 Set Grade B Lightning Proof
AC Input: 63A/2P *1;
AC Output: 16A/1P*4;
DC Output: 16A/1P*4
Input Voltage: AC220V.
11 Rectifier System 1 Set Model: GPE48120C (DC48V, 120A)
Including:
(1) 4×30A Rectifier Module;
(2) 1× Monitoring Module;
(3) Power distribution frame.
12 Package 1 Set

Wooden Case




Standard Modle List




Cooling Capacity(L35/L35) Product Model Mounting Method Dimension(W*D*H)mm Dimension(W*D*H)mm Without flange IP Noise (dB A) Certification
300W CCA003EA Side- Embedded 352*175*583 315*175*546 55 60 CE,CCC
400W CCA004EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
500W CCA005EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
600W CCA006EA Side-Embedded 352*175*583 315*175*546 55 60 CE,CCC
800W CCA008EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC
1000W CCA010EA Side-Embedded 482*175*782 445*175*745 55 65 CE,CCC

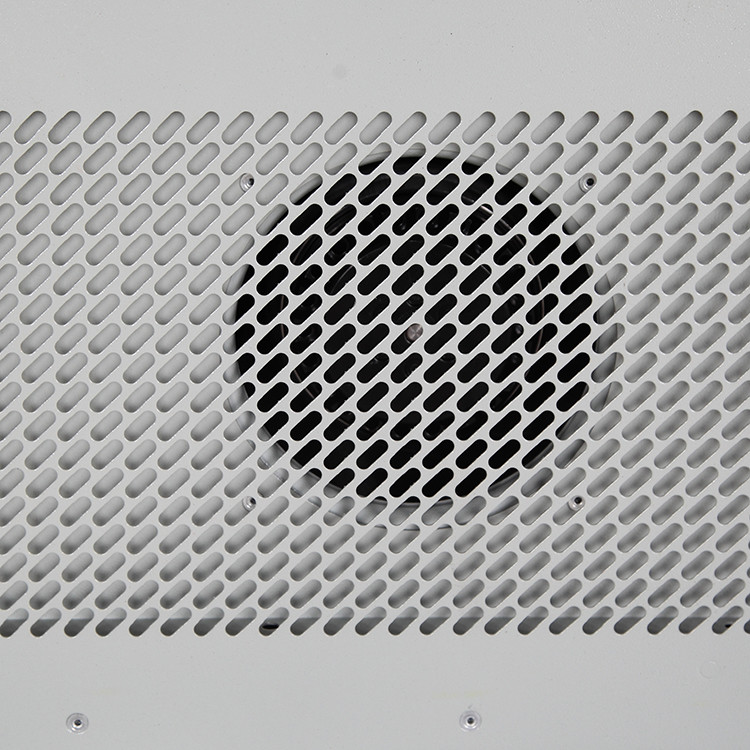

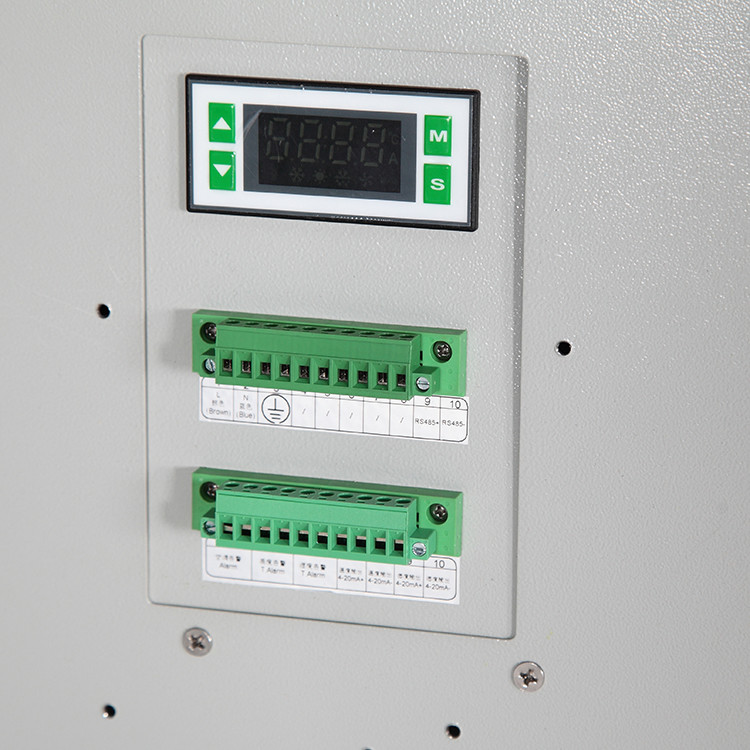

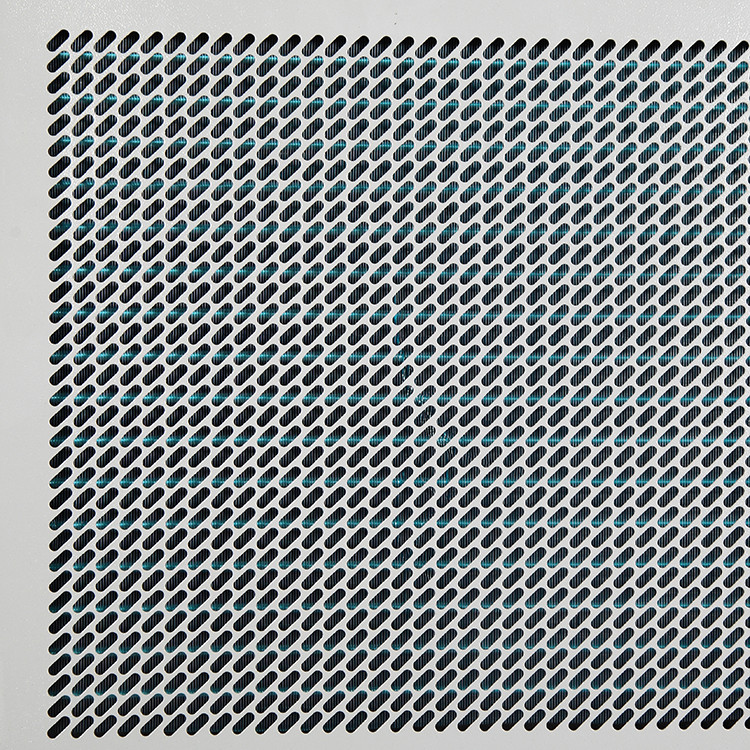

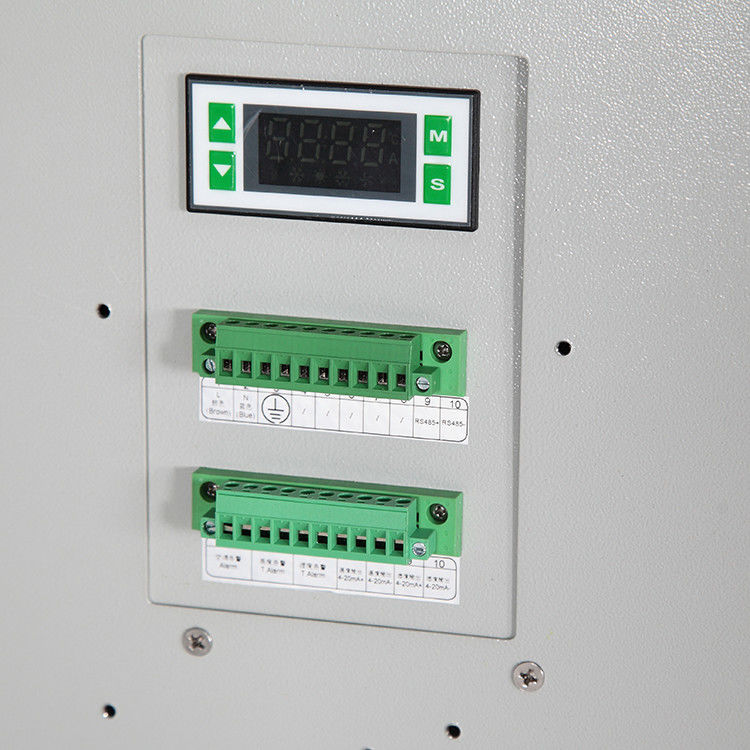

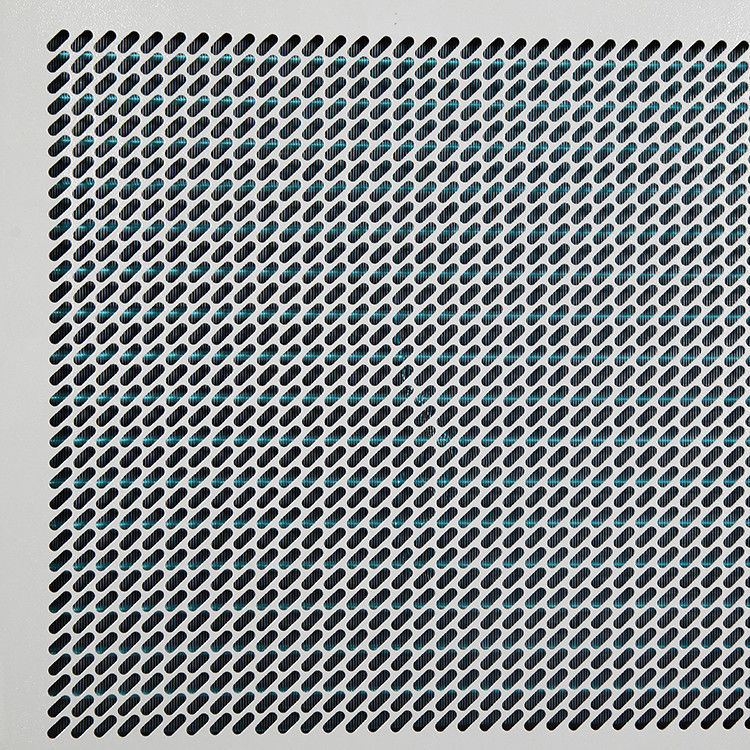

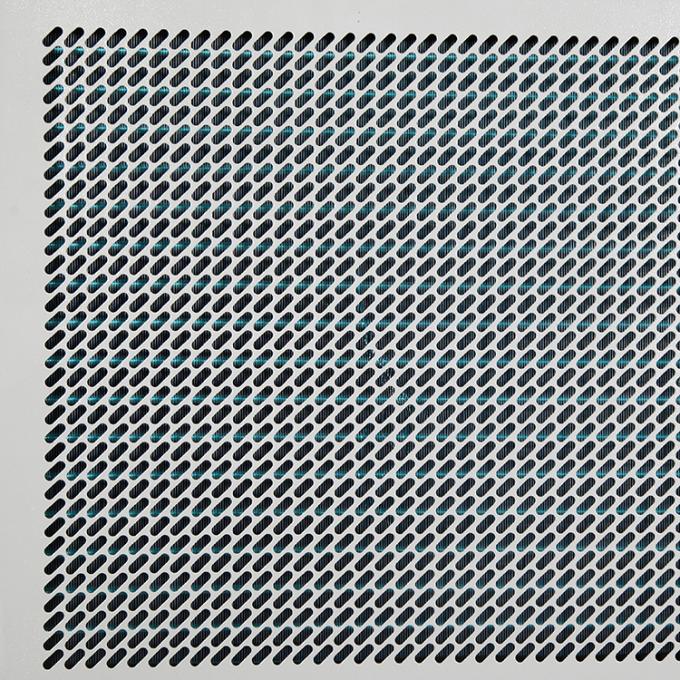

Product Details



220V Enclosure Air Conditioner , DC Air Conditioning System Easy Integration



220V Enclosure Air Conditioner , DC Air Conditioning System Easy Integration

Application

This kind air conditioner is specail for Telecom, Electric power, Machinery, Textile, Transportation, Automobile, Petroleum, Chemical, Metallurgy and Advertising, which is easily move and insert to the data equipment cabinet. And easy to maintaince.



220V Enclosure Air Conditioner , DC Air Conditioning System Easy Integration




FAQ



1. Q: How about the air cooler material?
A: It makes by 100% new plastic, pure copper for motor.

2. Q: What voltages you can do, could you make special voltages?
A: we can make DC48 and all AC voltage products for you.

3. Q: I want to use our own brand, is it OK?
A: It is possible, we supply the OEM products too.

4. Q: How about the warranty?
A: All the unit warranty is one year.
